Guiding Center Approximation

This example demonstrates how to solve the guiding center (GC) equations directly using TestParticle.jl. More theoretical details can be found in Guiding Center.

@example

import DisplayAs #hide
using TestParticle, OrdinaryDiffEqVerner, StaticArrays
import TestParticle as TP
using CairoMakie
CairoMakie.activate!(type = "png") #hide

function curved_B(x)
   # satisify ∇ ⋅ B = 0
   # B_θ = 1/r => ∂B_θ/∂θ = 0
   θ = atan(x[3] / (x[1] + 3))
   r = sqrt((x[1] + 3)^2 + x[3]^2)
   return SA[-1e-6 * sin(θ) / r, 0, 1e-6 * cos(θ) / r]
end

uniform_B(x) = SA[0.0, 0.0, 1e-8]
uniform_E(x) = SA[1e-9, 0.0, 0.0]

# Initial condition
stateinit = let x0 = [1.0, 0, 0], v0 = [0.0, 1.0, 0.1]
   [x0..., v0...]
end
# Time span
tspan = (0, 41)

param = prepare(uniform_E, curved_B, species = Proton)
prob = ODEProblem(trace!, stateinit, tspan, param)
sol = solve(prob, Vern9())

stateinit_gc,
param_gc = TP.prepare_gc(stateinit, uniform_E, curved_B,
   species = Proton, removeExB = false)

prob_gc = ODEProblem(trace_gc!, stateinit_gc, tspan, param_gc)

sol_gc = solve(prob_gc, Vern9())

# Test for numerical fields
xrange = range(0.9, 1.1, length = 20)
yrange = range(-0.45, 0.042, length = 60)
zrange = range(-0.65, 0.65, length = 40)

B_numerical = Array{Float64, 4}(undef, 3, length(xrange), length(yrange), length(zrange))

for k in eachindex(zrange), j in eachindex(yrange), i in eachindex(xrange)
   x = SA[xrange[i], yrange[j], zrange[k]]
   B_numerical[:, i, j, k] = curved_B(x)
end
##TODO Higher order interpolation leads to worse results --- needs investigations!
stateinit_gc,
param_gc = TP.prepare_gc(stateinit, xrange, yrange, zrange,
   uniform_E, B_numerical, species = Proton, removeExB = false, order = 1)

prob_gc = ODEProblem(trace_gc_1st!, stateinit_gc, tspan, param_gc)

sol_gc_numericBfield = solve(prob_gc, Vern9())

# analytical drifts
gc = param |> get_gc_func
gc_x0 = gc(stateinit) |> Vector
prob_gc_analytic = ODEProblem(trace_gc_drifts!, gc_x0, tspan, (param..., sol))
sol_gc_analytic = solve(prob_gc_analytic, Vern9(); save_idxs = [1, 2, 3])

# Functions for obtaining the guiding center from actual trajectory
gc_plot(x, y, z, vx, vy, vz) = (gc([x, y, z, vx, vy, vz])...,)

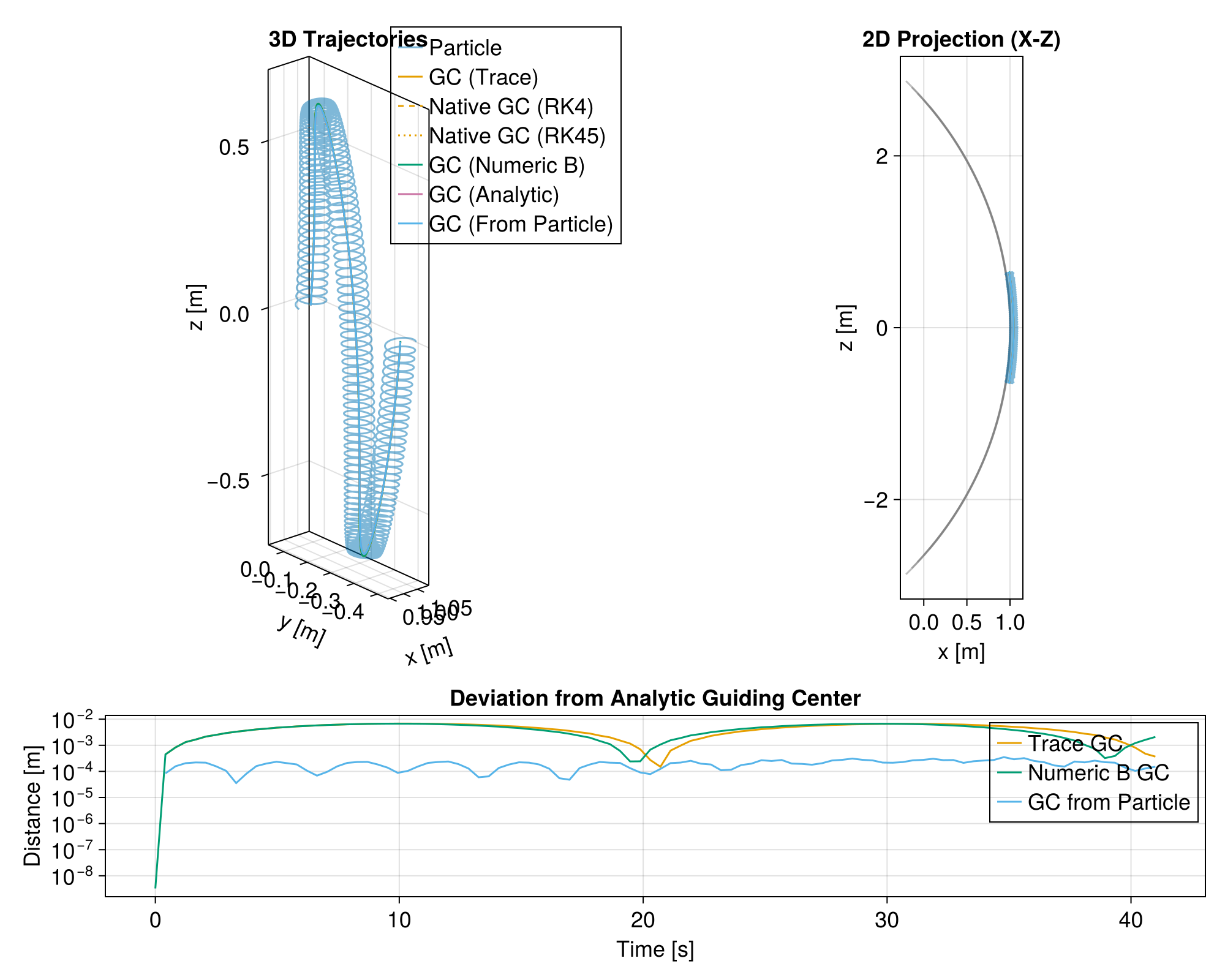

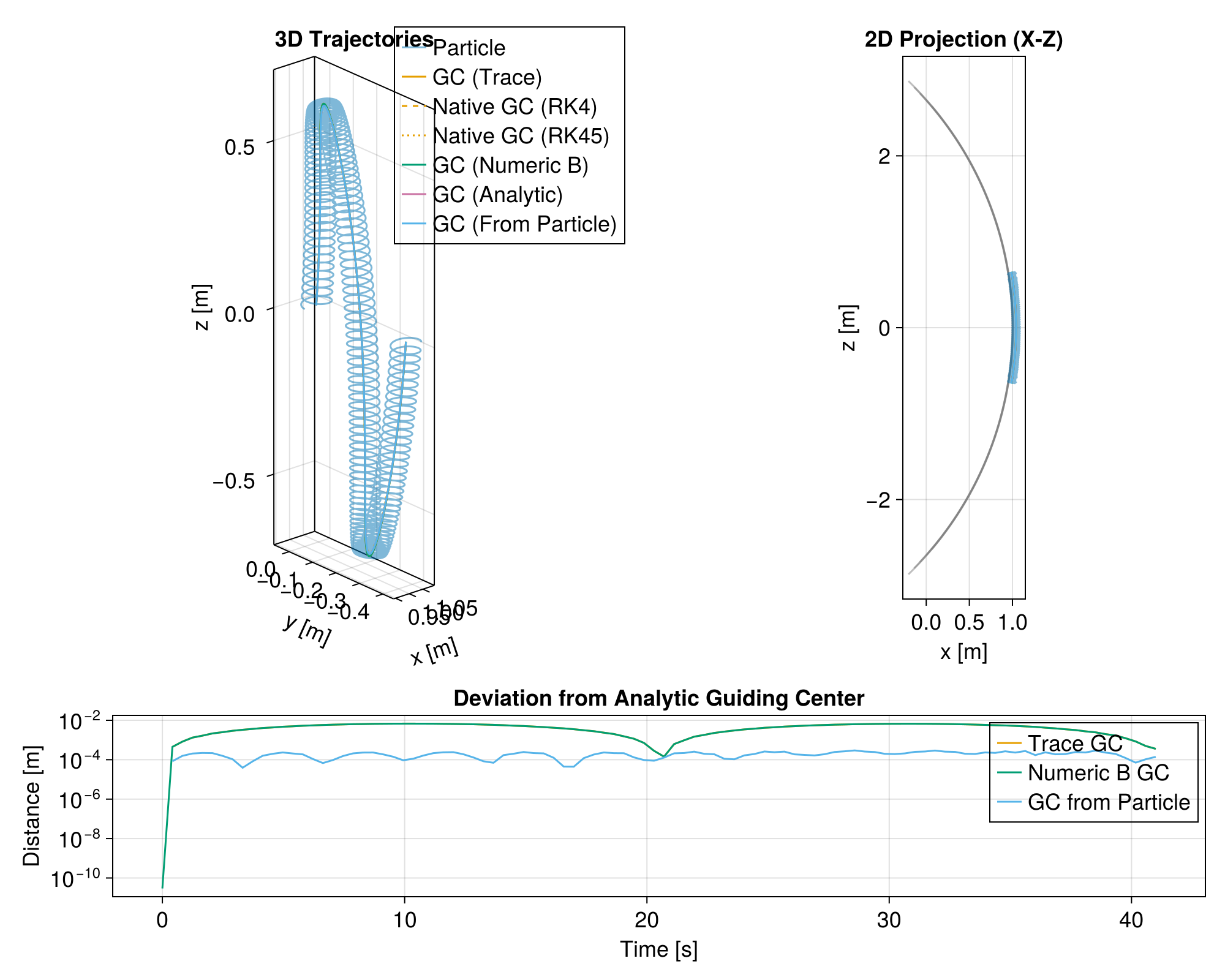

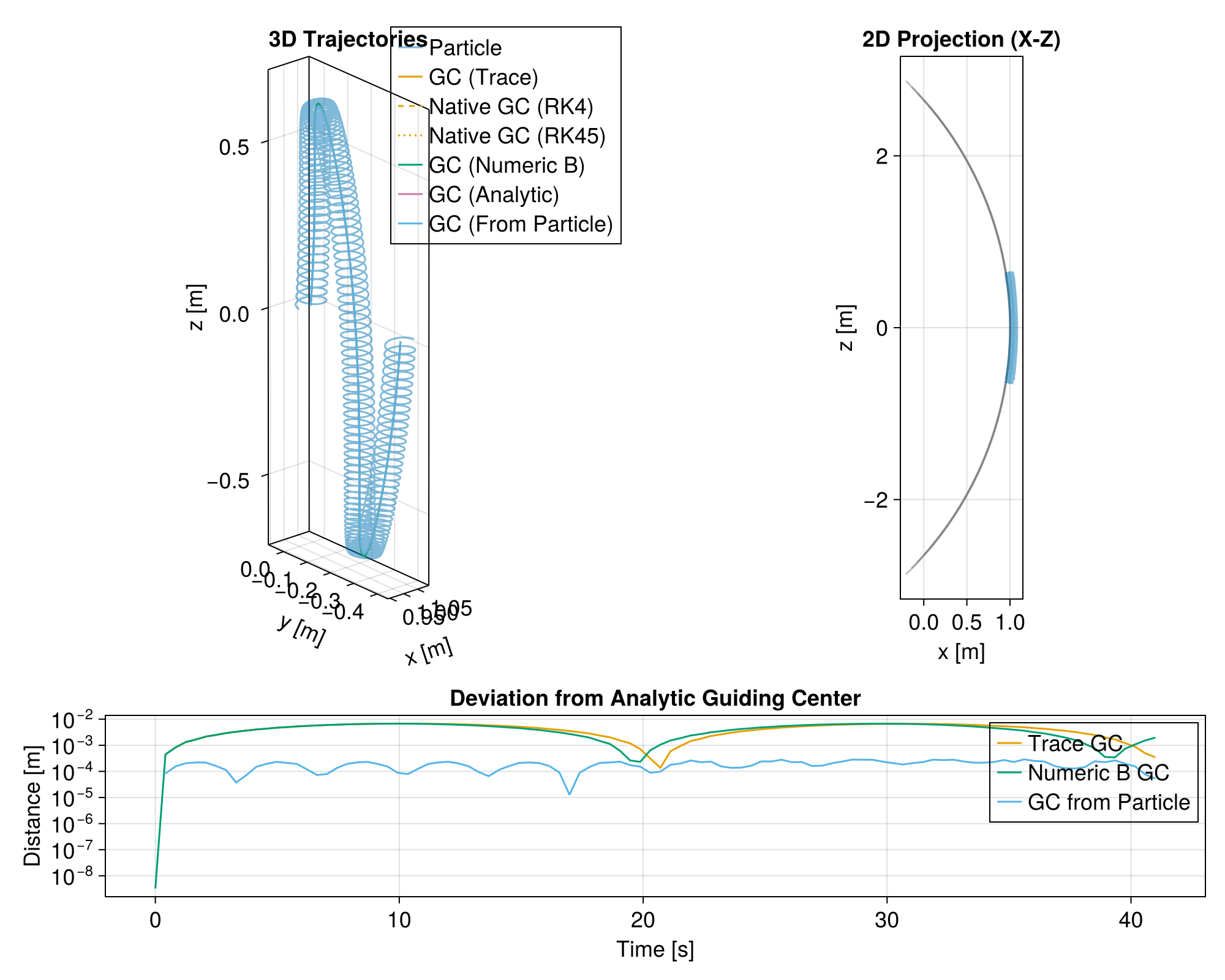

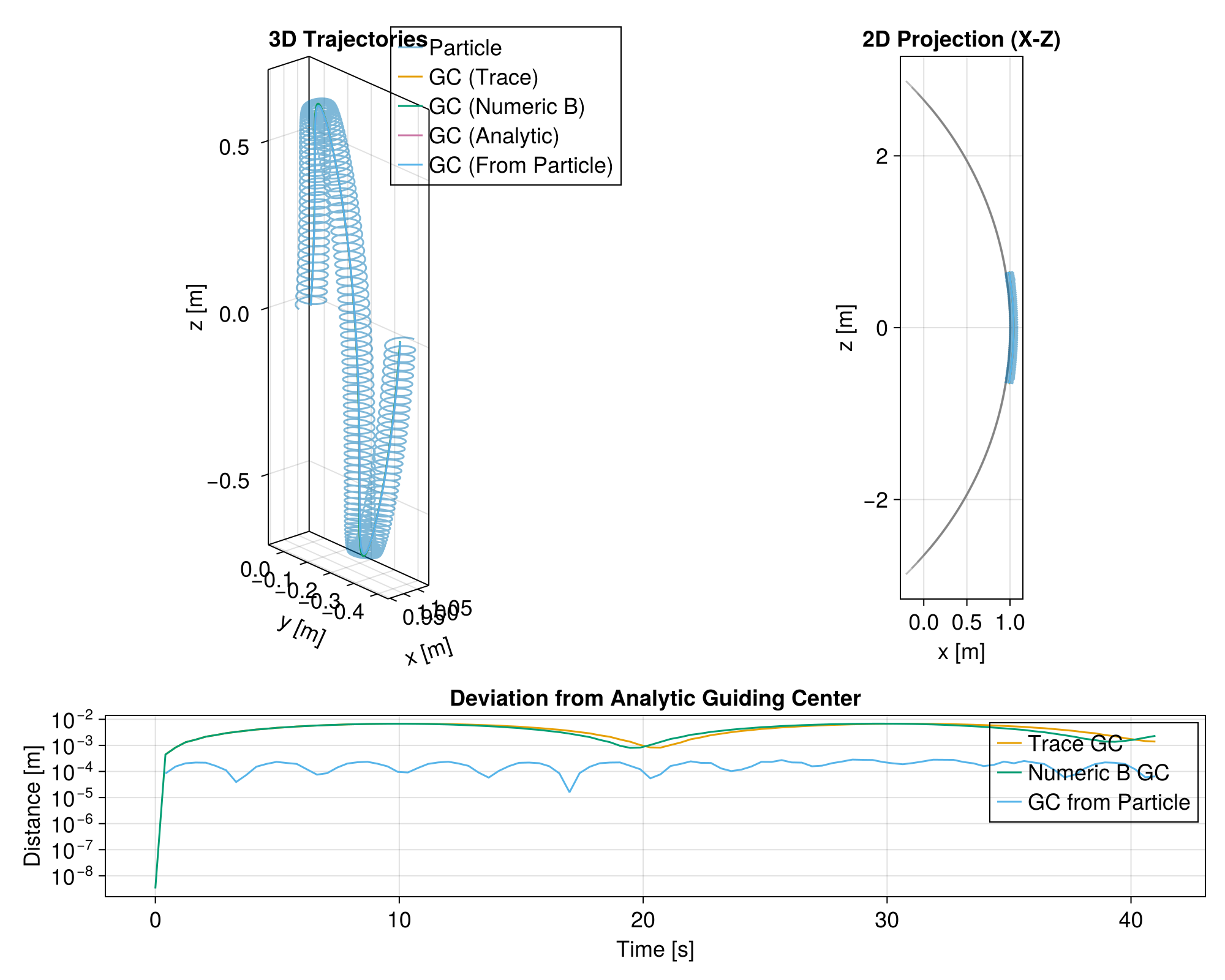

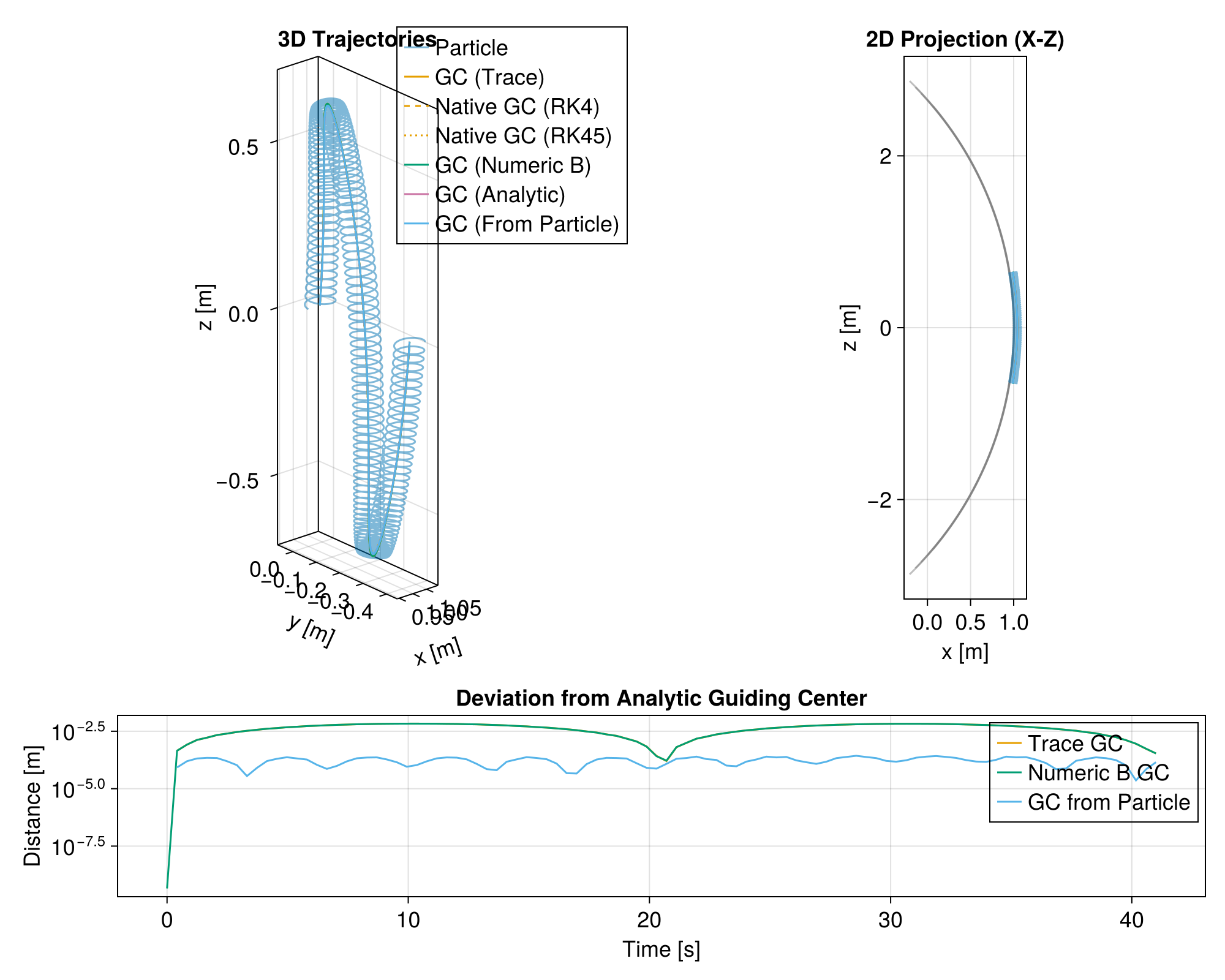

# Visualization
f = Figure(fontsize = 18)
ax = Axis3(f[1, 1],
   title = "Proton and Its Guiding Center Trajectories",
   xlabel = "x [m]",
   ylabel = "y [m]",
   zlabel = "z [m]",
   aspect = :data
)

plot!(ax, sol, idxs = (1, 2, 3), color = (Makie.wong_colors()[1], 0.2))
plot!(ax, sol_gc, idxs = (1, 2, 3), color = Makie.wong_colors()[2])
plot!(ax, sol_gc_numericBfield, idxs = (1, 2, 3), color = Makie.wong_colors()[3])
lines!(ax, sol_gc_analytic, idxs = (1, 2, 3), color = Makie.wong_colors()[4])
lines!(ax, sol, idxs = (gc_plot, 1, 2, 3, 4, 5, 6), color = Makie.wong_colors()[5])

f = DisplayAs.PNG(f) #hide

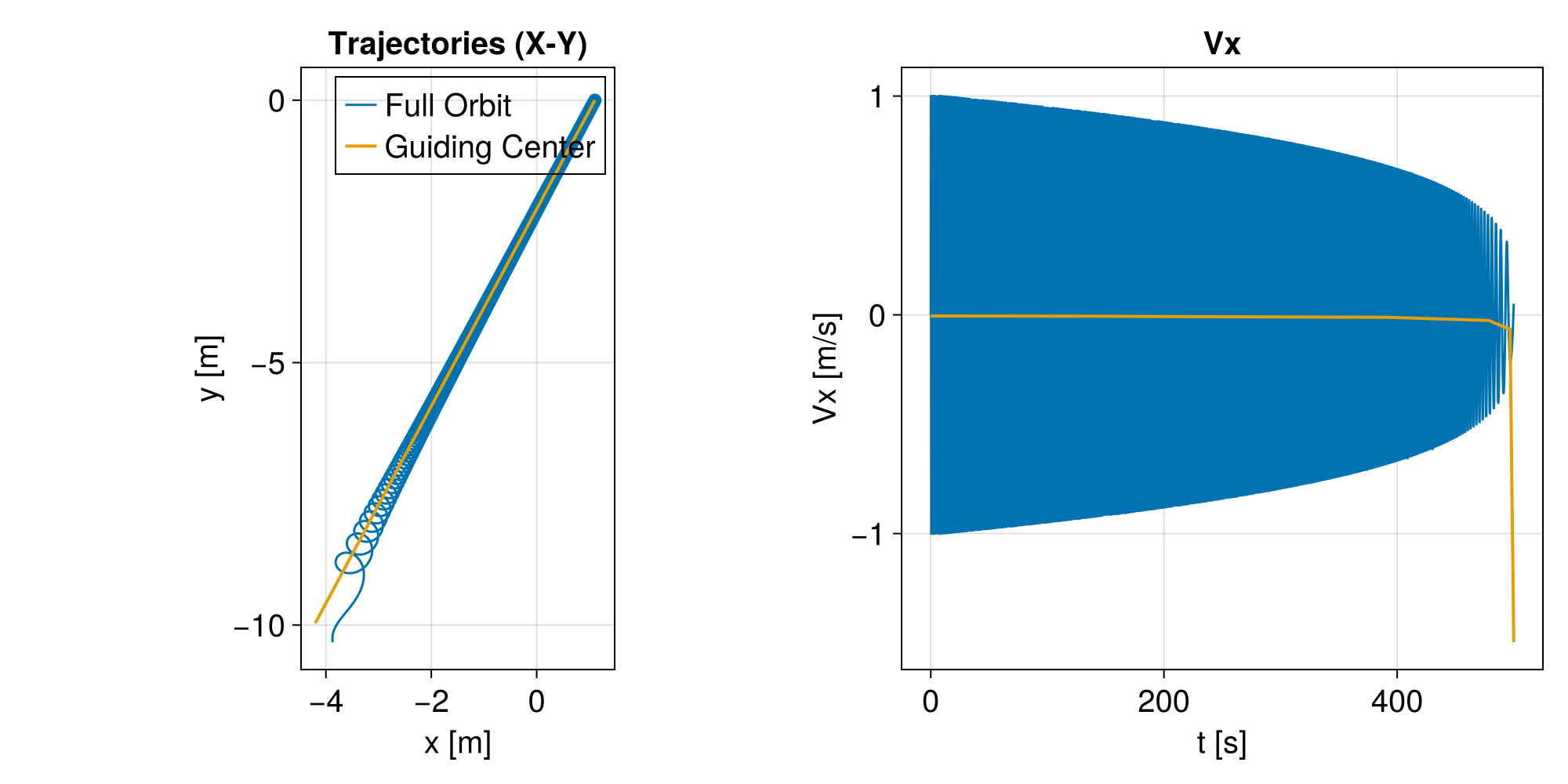

It is important to satisfy the strict scale requirements for the GC approximation, i.e. the gyro-radius must be much smaller than the characteristic spatial scales of the EM fields (on the order of 0.01) for the finite-Larmor-radius (FLR) 1st order approximation to be valid. Consider the following example of grad-B drift:

@example

uniform_E(x) = SA[1e-9, 0.0, 0.0]
grad_B(x) = SA[0, 0, 1e-8 + 1e-9 * x[2]]

tspan = (0, 20)
stateinit = let x0 = [1.0, 0, 0], v0 = [0.0, 1.0, 0.1]
   [x0..., v0...]
end

stateinit_gc,
param_gc = TP.prepare_gc(stateinit, uniform_E, grad_B,
   species = Proton, removeExB = false)

prob_gc = ODEProblem(trace_gc_1st!, stateinit_gc, tspan, param_gc)

sol_gc = solve(prob_gc, Vern9())

# analytical drifts
param = prepare(uniform_E, grad_B, species = Proton)
prob = ODEProblem(trace!, stateinit, tspan, param)
sol = solve(prob, Vern9())

gc = param |> get_gc_func
gc_x0 = gc(stateinit) |> Vector
prob_gc_analytic = ODEProblem(trace_gc_drifts!, gc_x0, tspan, (param..., sol))
sol_gc_analytic = solve(prob_gc_analytic, Vern9(); save_idxs = [1, 2, 3])

# Visualization
f = Figure(fontsize = 18)
ax = Axis3(f[1, 1],
   title = "Proton and Its Guiding Center Trajectories",
   xlabel = "x [m]",
   ylabel = "y [m]",
   zlabel = "z [m]",
   aspect = :data
)

plot!(ax, sol, idxs = (1, 2, 3), color = (Makie.wong_colors()[1], 0.4))
plot!(ax, sol_gc, idxs = (1, 2, 3), color = Makie.wong_colors()[2])
lines!(ax, sol_gc_analytic, idxs = (1, 2, 3), color = Makie.wong_colors()[3])
lines!(ax, sol, idxs = (gc_plot, 1, 2, 3, 4, 5, 6), color = Makie.wong_colors()[4])

f = DisplayAs.PNG(f) #hide

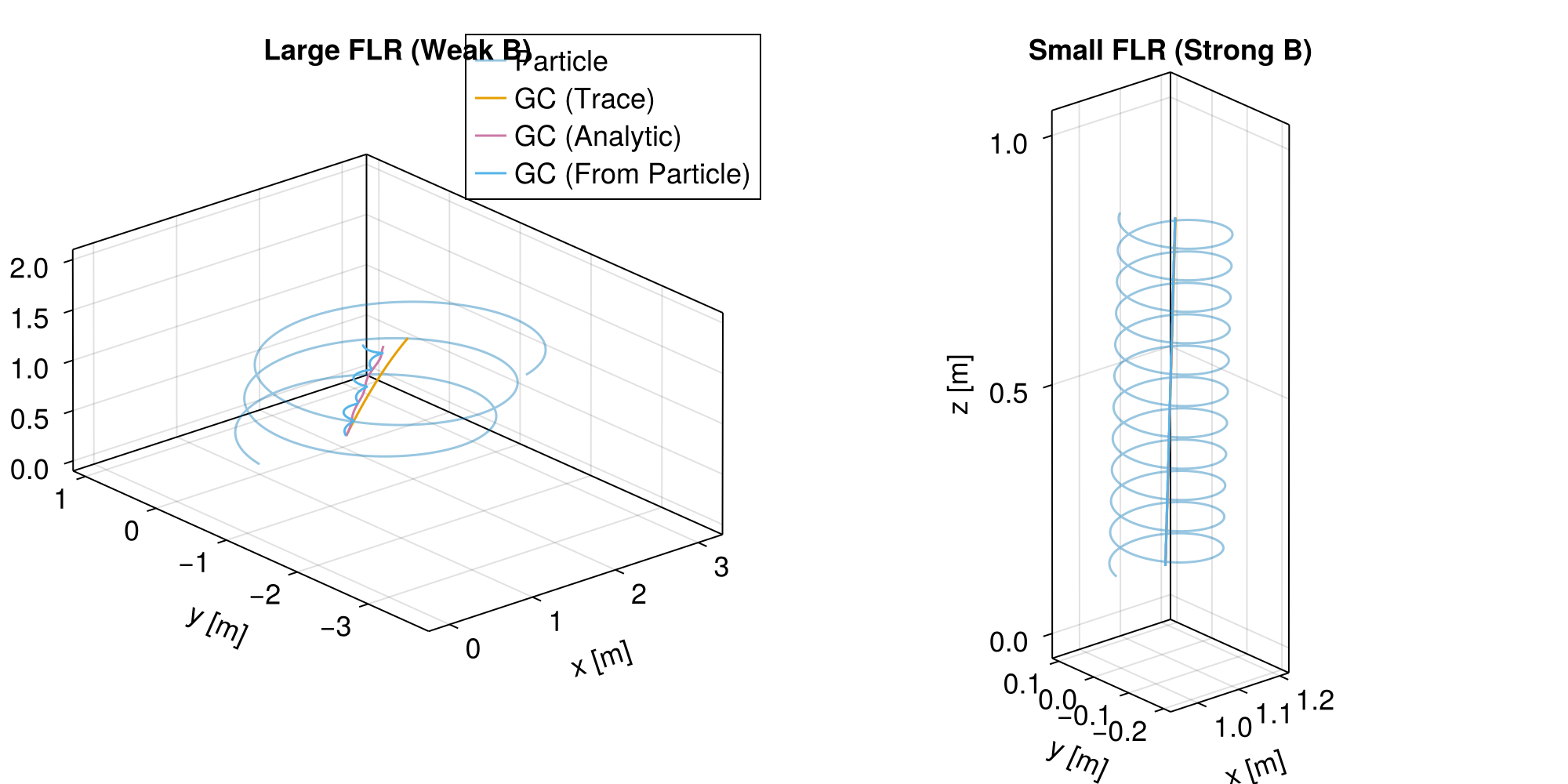

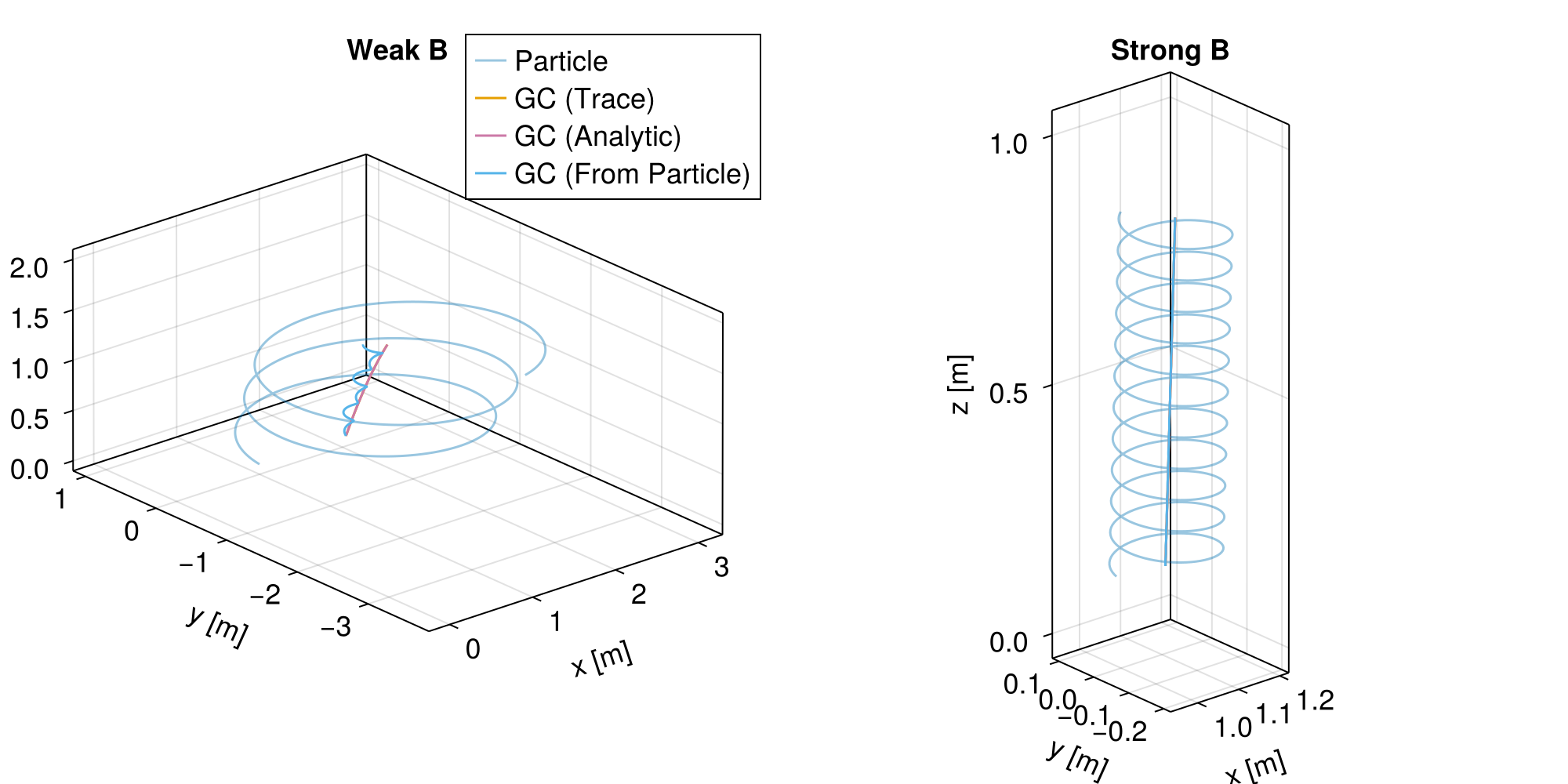

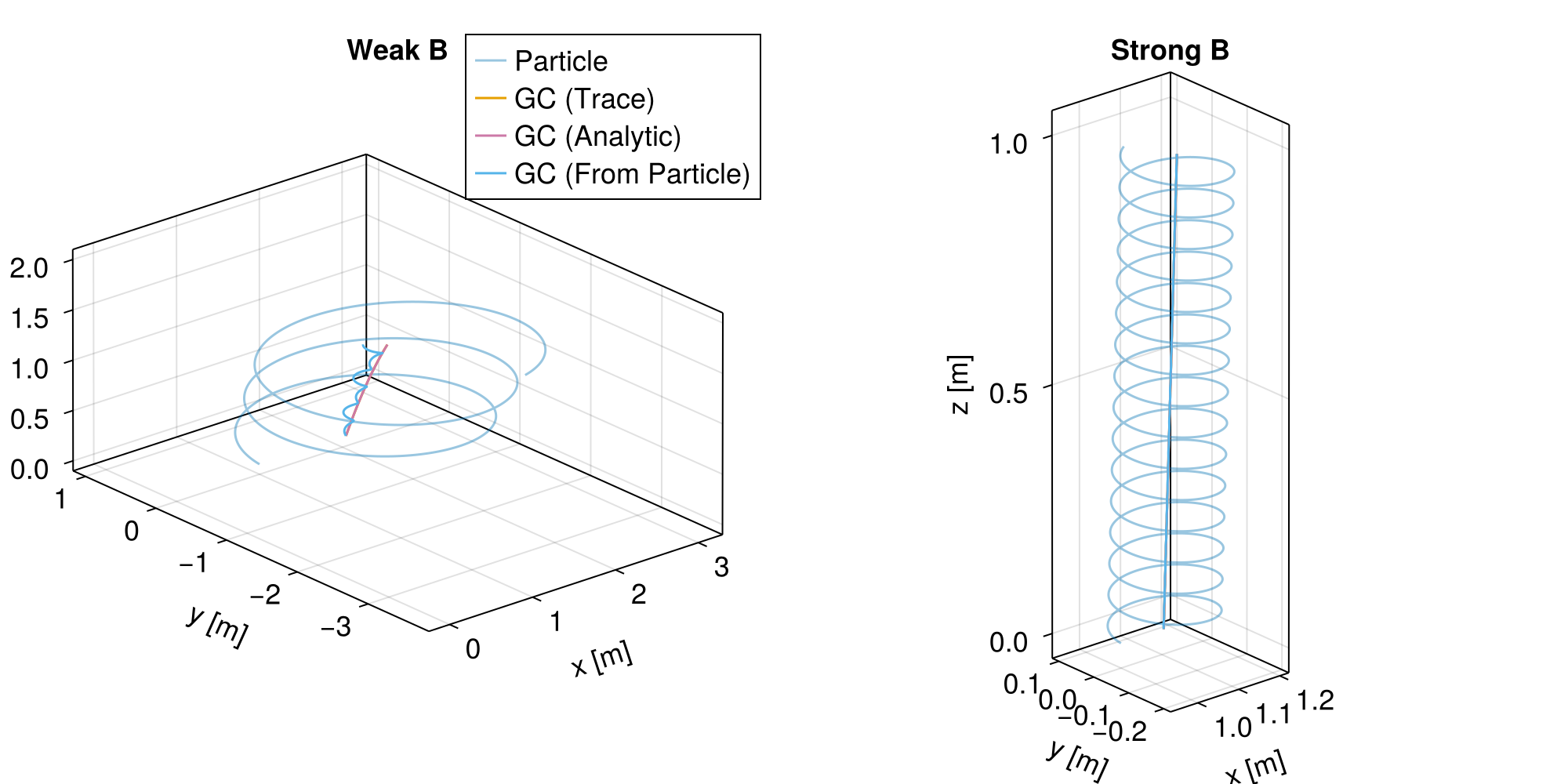

We can clearly see the deviations caused by the FLR effect. If we use a smaller gyro-radius by increasing the magnetic field, this accuracy will be much higher:

@example

grad_B(x) = SA[0, 0, 1e-7 + 1e-8 * x[2]]

tspan = (0, 10)
stateinit_gc,
param_gc = TP.prepare_gc(stateinit, uniform_E, grad_B,
   species = Proton, removeExB = false)

prob_gc = ODEProblem(trace_gc_1st!, stateinit_gc, tspan, param_gc)

sol_gc = solve(prob_gc, Vern9())

# analytical drifts
param = prepare(uniform_E, grad_B, species = Proton)
prob = ODEProblem(trace!, stateinit, tspan, param)
sol = solve(prob, Vern9())

gc = param |> get_gc_func
gc_x0 = gc(stateinit) |> Vector
prob_gc_analytic = ODEProblem(trace_gc_drifts!, gc_x0, tspan, (param..., sol))
sol_gc_analytic = solve(prob_gc_analytic, Vern9(); save_idxs = [1, 2, 3])

# Visualization
f = Figure(fontsize = 18)
ax = Axis3(f[1, 1],
   title = "Proton and Its Guiding Center Trajectories",
   xlabel = "x [m]",
   ylabel = "y [m]",
   zlabel = "z [m]",
   aspect = :data
)

plot!(ax, sol, idxs = (1, 2, 3), color = (Makie.wong_colors()[1], 0.4))
plot!(ax, sol_gc, idxs = (1, 2, 3), color = Makie.wong_colors()[2])
lines!(ax, sol_gc_analytic, idxs = (1, 2, 3), color = Makie.wong_colors()[3])
lines!(ax, sol, idxs = (gc_plot, 1, 2, 3, 4, 5, 6), color = Makie.wong_colors()[4])

f = DisplayAs.PNG(f) #hide

Therefore, it is crucial to check the scale before performing any GC tracing!
