Ensemble Tracing

This example demonstrates how to trace multiple particles efficiently using the EnsembleProblem interface from DifferentialEquations.jl. We cover three use cases:

Basic ensemble tracing with varying initial conditions.
Sampling initial velocities from a Maxwellian distribution.
Customizing output to save specific quantities (e.g., field values along trajectories).
Using the native Boris pusher for ensemble problems.

julia

using TestParticle
using TestParticle: get_BField
using OrdinaryDiffEqVerner
using StaticArrays
using Statistics
using LinearAlgebra
using Random
using CairoMakie

1. Basic Ensemble Tracing

In this section, we trace multiple electrons in a simple analytic EM field. We use prob_func to define unique initial conditions for each particle.

julia

B_analytic(x) = SA[0, 0, 1e-11]
E_analytic(x) = SA[0, 0, 1e-13]

# Initial state
x0 = [0.0, 0.0, 0.0] # initial position, [m]
u0 = [1.0, 0.0, 0.0] # initial velocity, [m/s]
stateinit = [x0..., u0...]

param = prepare(E_analytic, B_analytic, species = Electron)
tspan = (0.0, 10.0)

# Define the problem for a single particle
prob = ODEProblem(trace!, stateinit, tspan, param)

# Define prob_func to vary the initial x-velocity based on the particle index
prob_func_basic(prob, i, repeat) = remake(prob, u0 = [prob.u0[1:3]..., i/3, 0.0, 0.0])

trajectories = 3
ensemble_prob = EnsembleProblem(prob; prob_func = prob_func_basic, safetycopy = false)
sols = solve(ensemble_prob, Vern7(), EnsembleThreads(); trajectories)

# Visualization

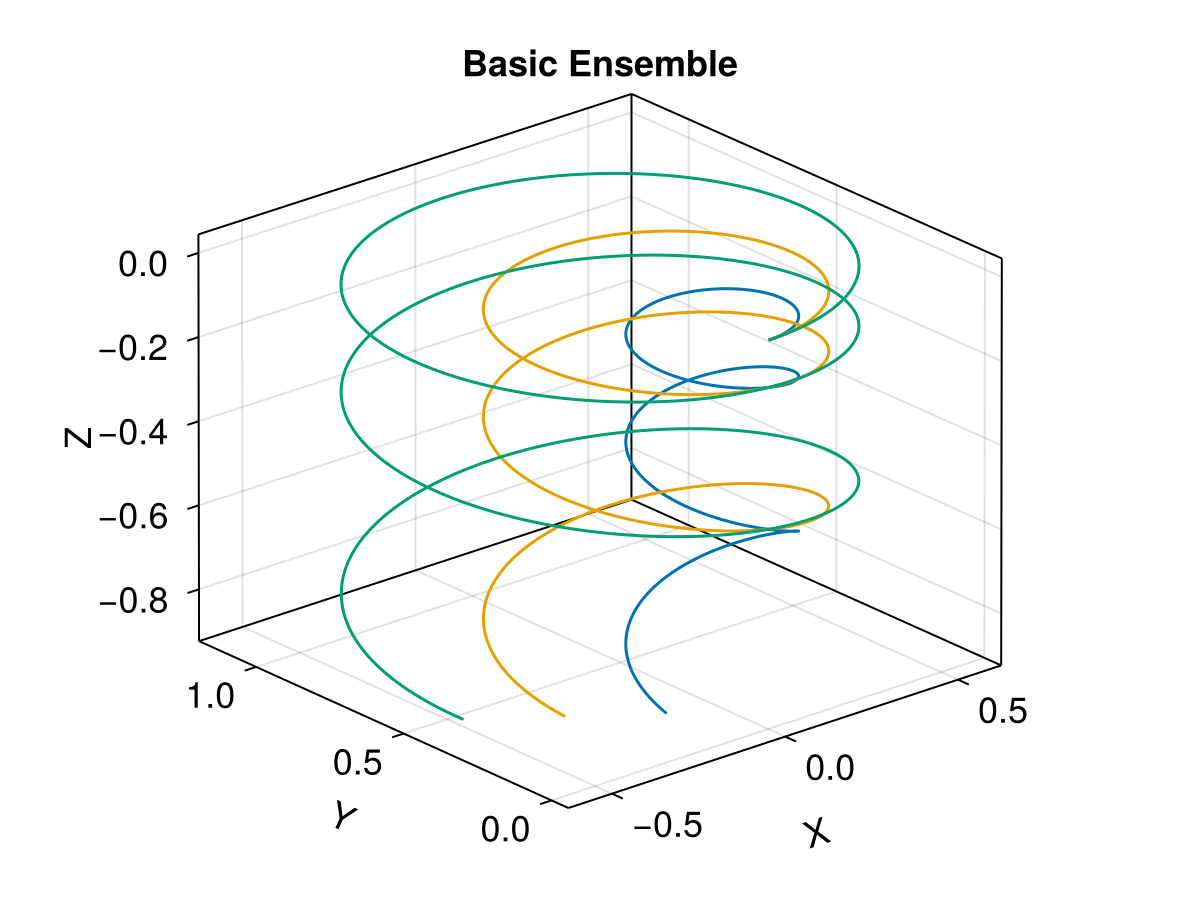

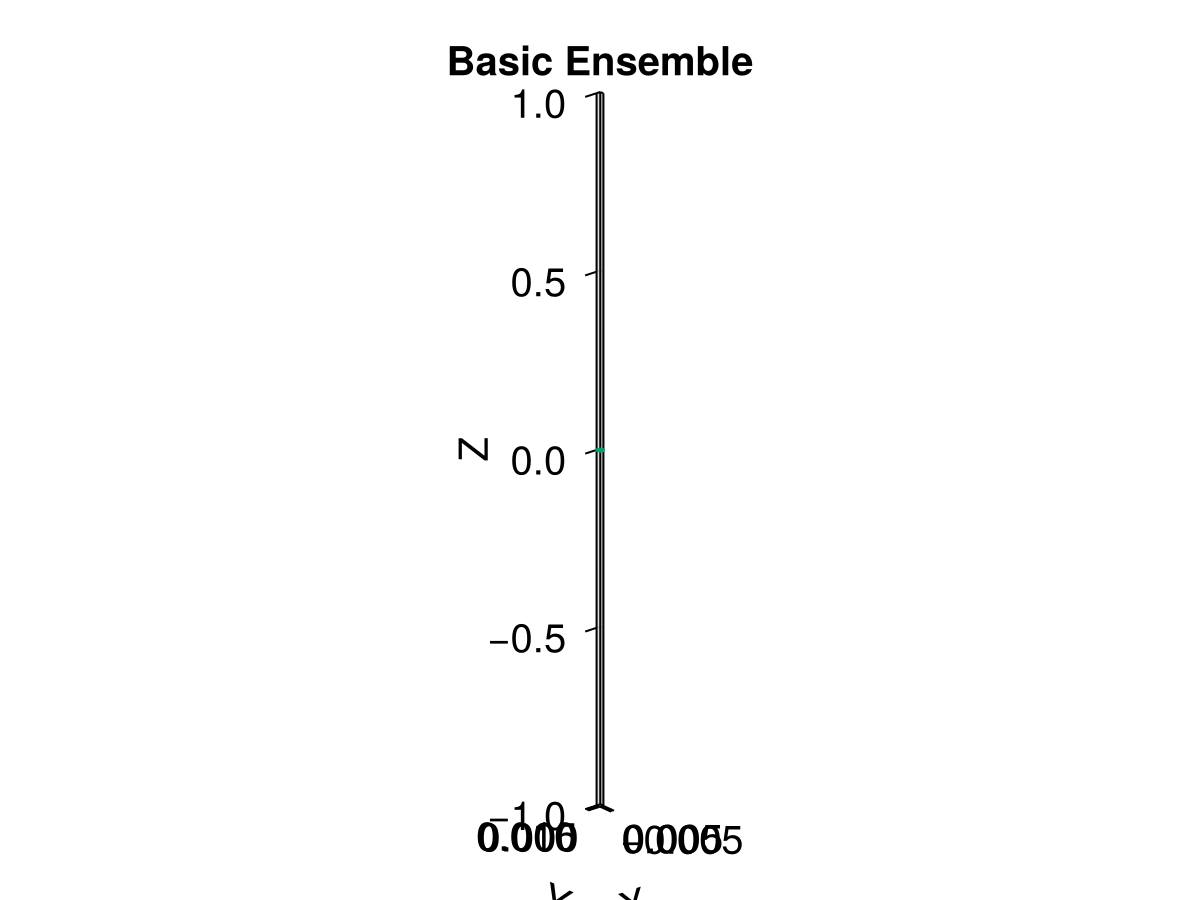

f = Figure(fontsize = 18)

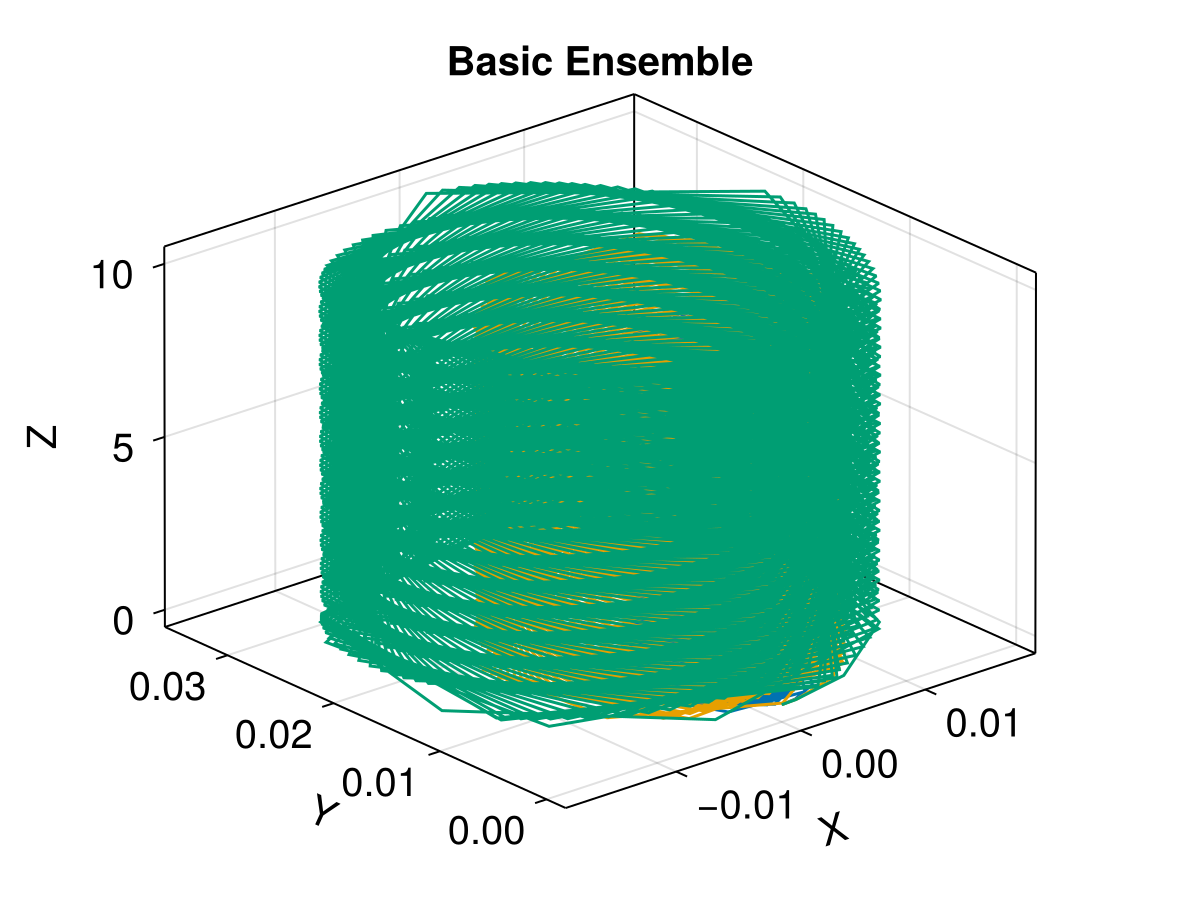

ax = Axis3(f[1, 1], title = "Basic Ensemble", xlabel = "X",
   ylabel = "Y", zlabel = "Z", aspect = :data)

for i in eachindex(sols)
   lines!(ax, sols[i], idxs = (1, 2, 3), label = "traj $i", color = Makie.wong_colors()[i])
end

2. Sampling from a Distribution

Often we want to sample particle initial velocities from a distribution, such as a Maxwellian. Here we demonstrate how to do this using Maxwellian from TestParticle.jl.

julia

Random.seed!(1234)

# Define a new prob_func that samples from a Maxwellian
function prob_func_maxwellian(prob, i, repeat)
   # Sample from a Maxwellian with bulk speed 0 and thermal speed 1.0
   vdf = Maxwellian([0.0, 0.0, 0.0], 1.0)
   v = sample(vdf)
   remake(prob; u0 = [prob.u0[1:3]..., v...])
end

trajectories_dist = 10
ensemble_prob_dist = EnsembleProblem(prob; prob_func = prob_func_maxwellian, safetycopy = false)
sols_dist = solve(ensemble_prob_dist, Vern7(), EnsembleThreads(); trajectories = trajectories_dist)

# Visualization

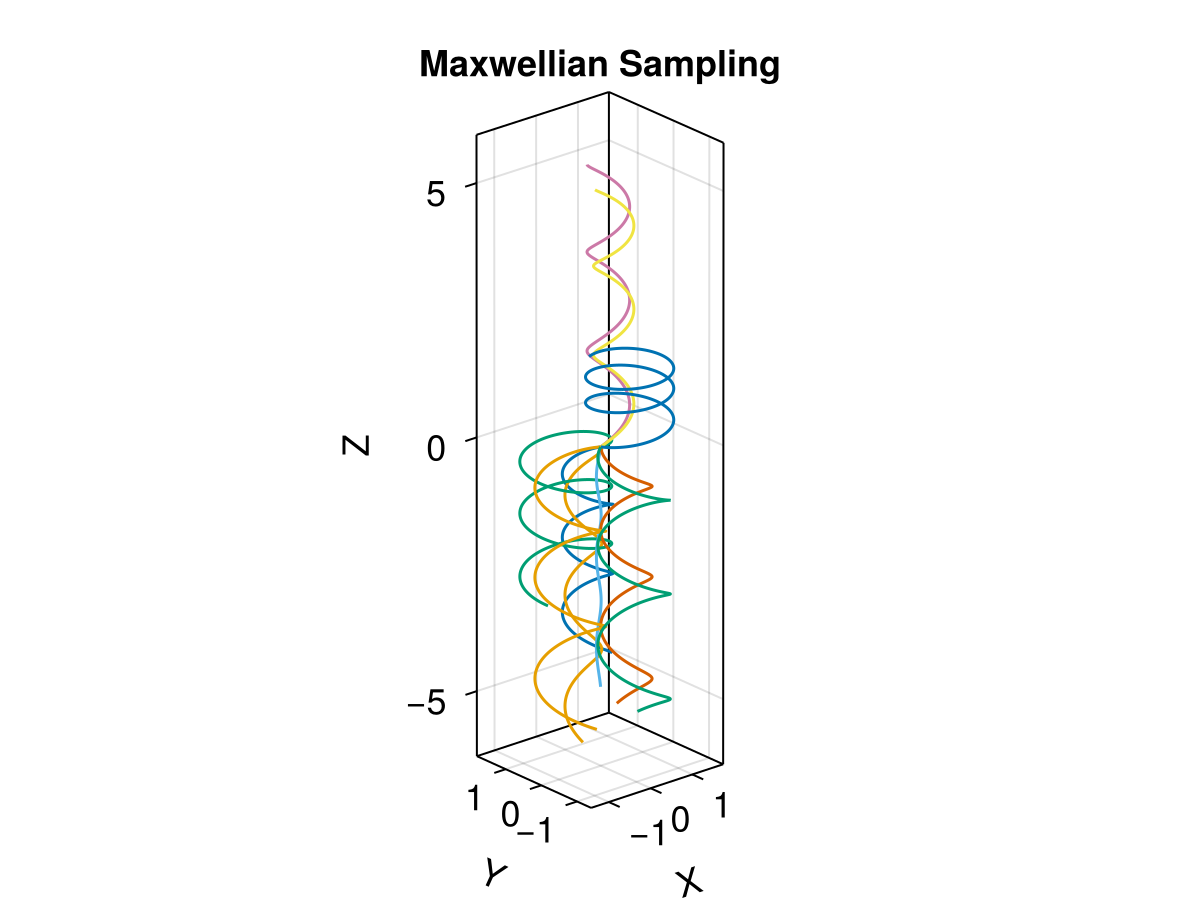

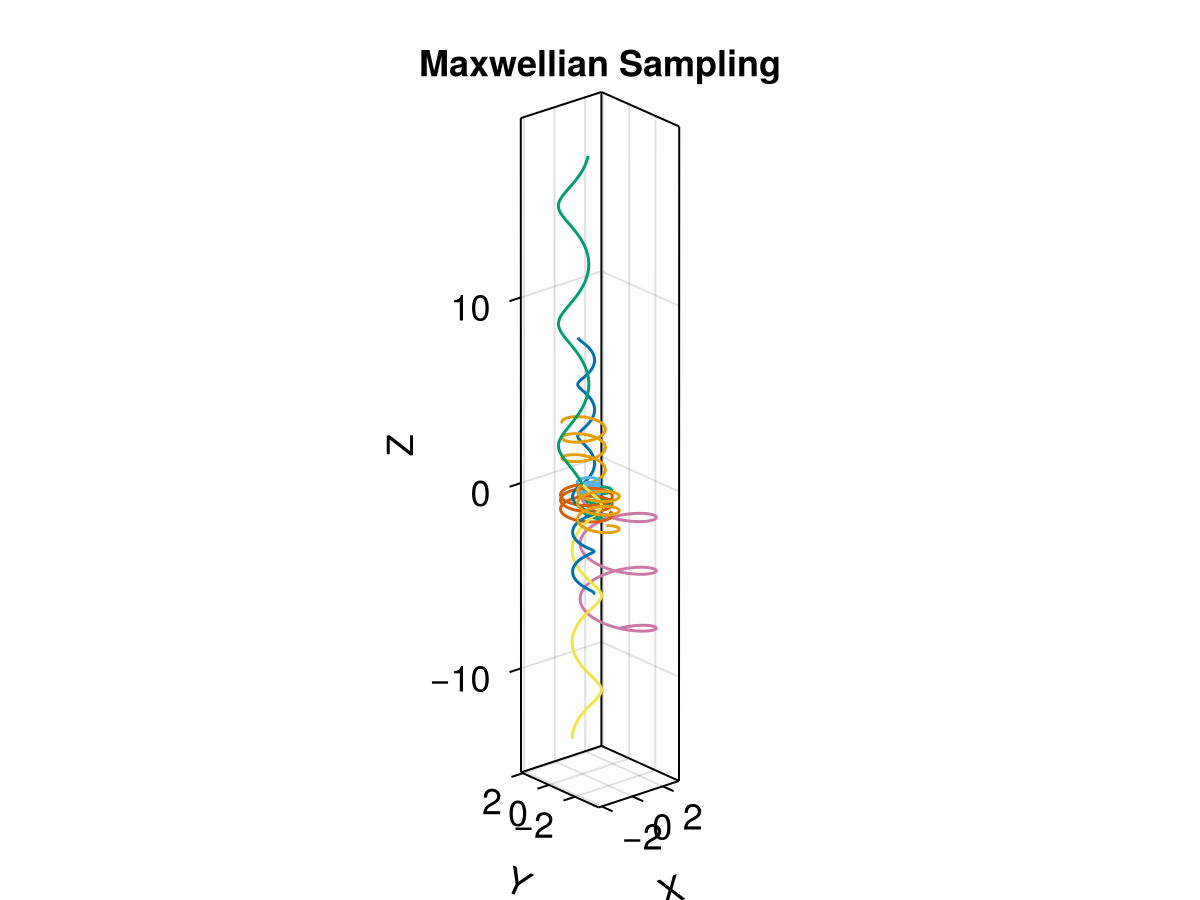

f = Figure(fontsize = 18)

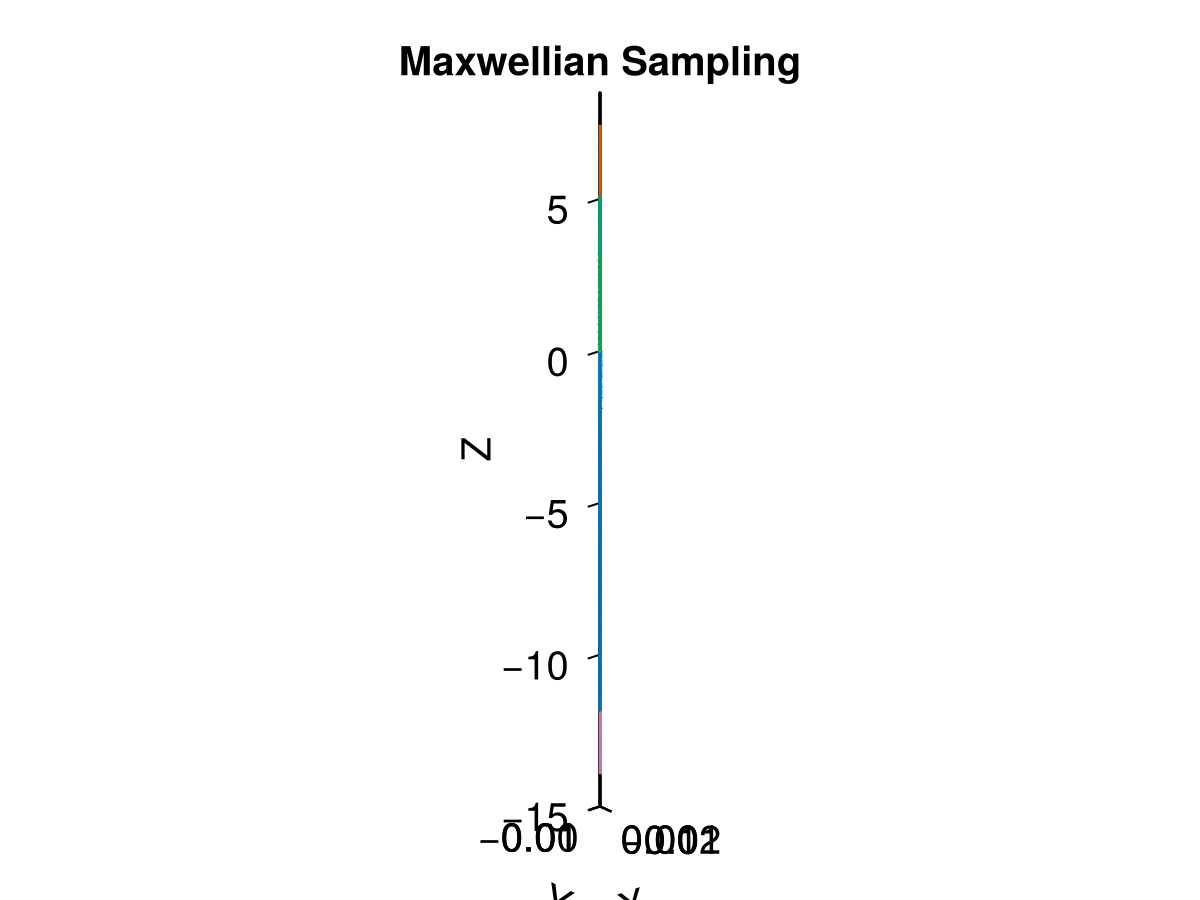

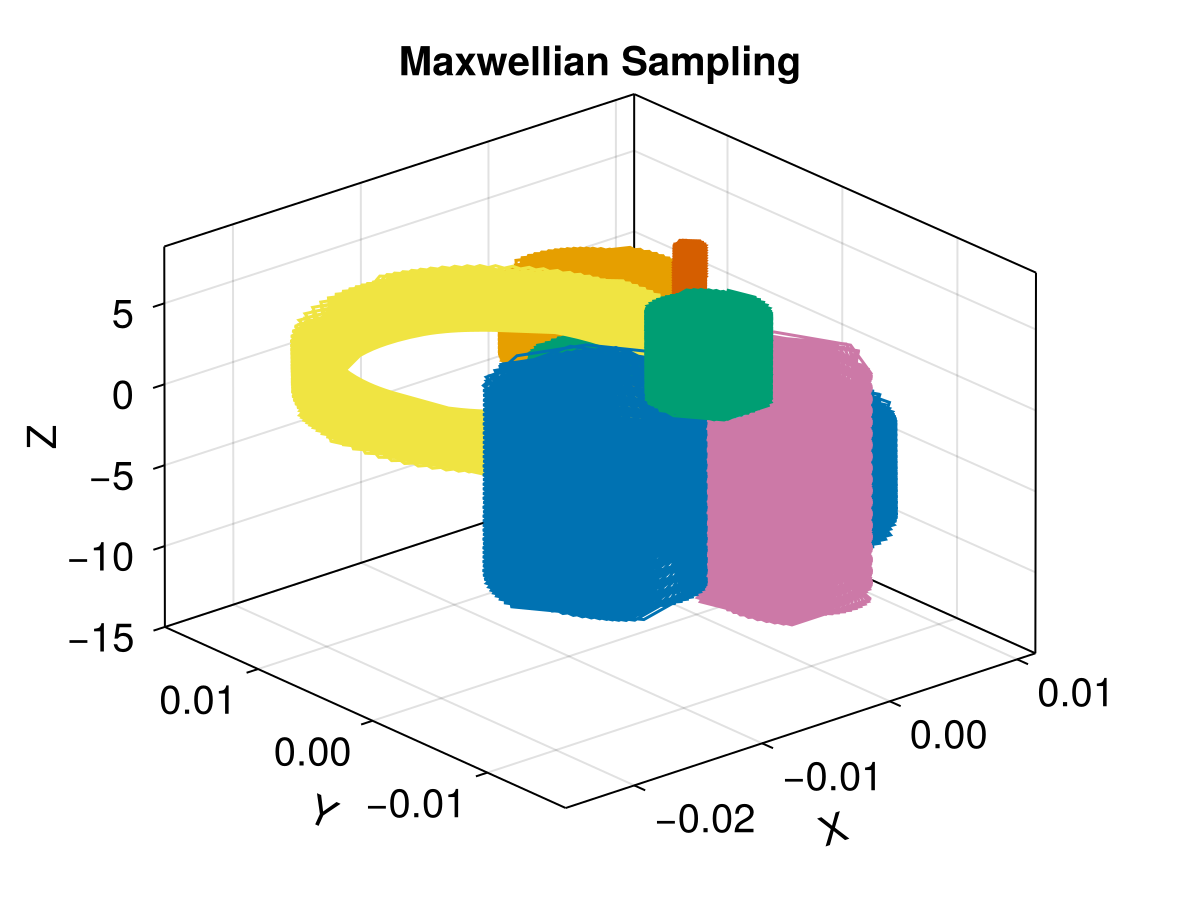

ax = Axis3(f[1, 1], title = "Maxwellian Sampling", xlabel = "X",
   ylabel = "Y", zlabel = "Z", aspect = :data)

for i in eachindex(sols_dist)
   lines!(ax, sols_dist[i], idxs = (1, 2, 3), label = "$i",
      color = Makie.wong_colors()[mod1(i, 7)])
end

3. Custom Output (Reducing Memory Usage)

For large ensembles or long simulations, saving the full trajectory can be memory-intensive. The output_func argument allows us to save only what we need. Here, we save the magnetic field and the cosine of the pitch angle ( $μ$ ) along the trajectory.

We use a numerical field for this example to demonstrate a more complex setup. See Demo: single tracing with additional diagnostics for details on unit conversion.

julia

# Generate a numerical magnetic field
nx, ny, nz = 4, 6, 8
x_grid = range(0, 1, length = nx)
y_grid = range(0, 1, length = ny)
z_grid = range(0, 1, length = nz)
B_num = Array{Float32, 4}(undef, 3, nx, ny, nz)
B_num[1, :, :, :] .= 0.0
B_num[2, :, :, :] .= 0.0
B_num[3, :, :, :] .= 2.0

# Compute reference values
function getmeanB(B)
   B₀sum = eltype(B)(0)
   for k in axes(B, 4), j in axes(B, 3), i in axes(B, 2)
      B₀sum += B[1, i, j, k]^2 + B[2, i, j, k]^2 + B[3, i, j, k]^2
   end

   sqrt(B₀sum / prod(size(B)[2:4]))
end

B₀ = getmeanB(B_num)
U₀ = 1.0
l₀ = 2*nx
E₀ = U₀ * B₀

# Normalize units
x_norm = x_grid ./ l₀
y_norm = y_grid ./ l₀
z_norm = z_grid ./ l₀
B_norm = B_num ./ B₀
E_func(x) = SA[0.0, 0.0, 0.0] # E is zero

# Prepare parameters
# bc=2 uses periodic boundary conditions
param_custom = prepare(x_norm, y_norm, z_norm, E_func, B_norm; species = User, bc = 2)

# Initial condition
stateinit_custom = [0.0, 0.0, 0.0, 1.0, 0.0, 0.0]
tspan_custom = (0.0, 2π)

prob_custom = ODEProblem(trace_normalized!, stateinit_custom, tspan_custom, param_custom)

# Define prob_func to initialize particles with different pitch angles
function prob_func_custom(prob, i, repeat)
   B0 = get_BField(prob)(prob.u0)
   B0 = normalize(B0)

   Bperp1 = normalize(SA[0.0, -B0[3], B0[2]])
   Bperp2 = normalize(B0 × Bperp1)

   ϕ = 2π * rand()
   θ = acos(0.5) # constant pitch angle for demonstration
   sinϕ, cosϕ = sincos(ϕ)

   u = @. (B0*cos(θ) + Bperp1*(sin(θ)*cosϕ) + Bperp2*(sin(θ)*sinϕ)) * U₀
   remake(prob; u0 = [prob.u0[1:3]..., u...])
end

# Define output_func to save specific data
function output_func_custom(sol, i)
   getB = get_BField(sol)
   b = getB.(sol.u)

   # Calculate cosine of pitch angle
   μ = [@views (b[j] ⋅ sol[4:6, j]) / (norm(b[j]) * norm(sol[4:6, j]))
        for j in eachindex(sol)]

   # Return: (trajectory, B-field, pitch-angle-cosine), rerun_flag
   (sol.u, b, μ), false
end

trajectories_custom = 2
saveat = tspan_custom[2] / 40

ensemble_prob_custom = EnsembleProblem(prob_custom;
   prob_func = prob_func_custom,
   output_func = output_func_custom,
   safetycopy = false
)

sols_custom = solve(ensemble_prob_custom, Vern9(), EnsembleThreads();
   trajectories = trajectories_custom,
   saveat = saveat
)

# Visualization

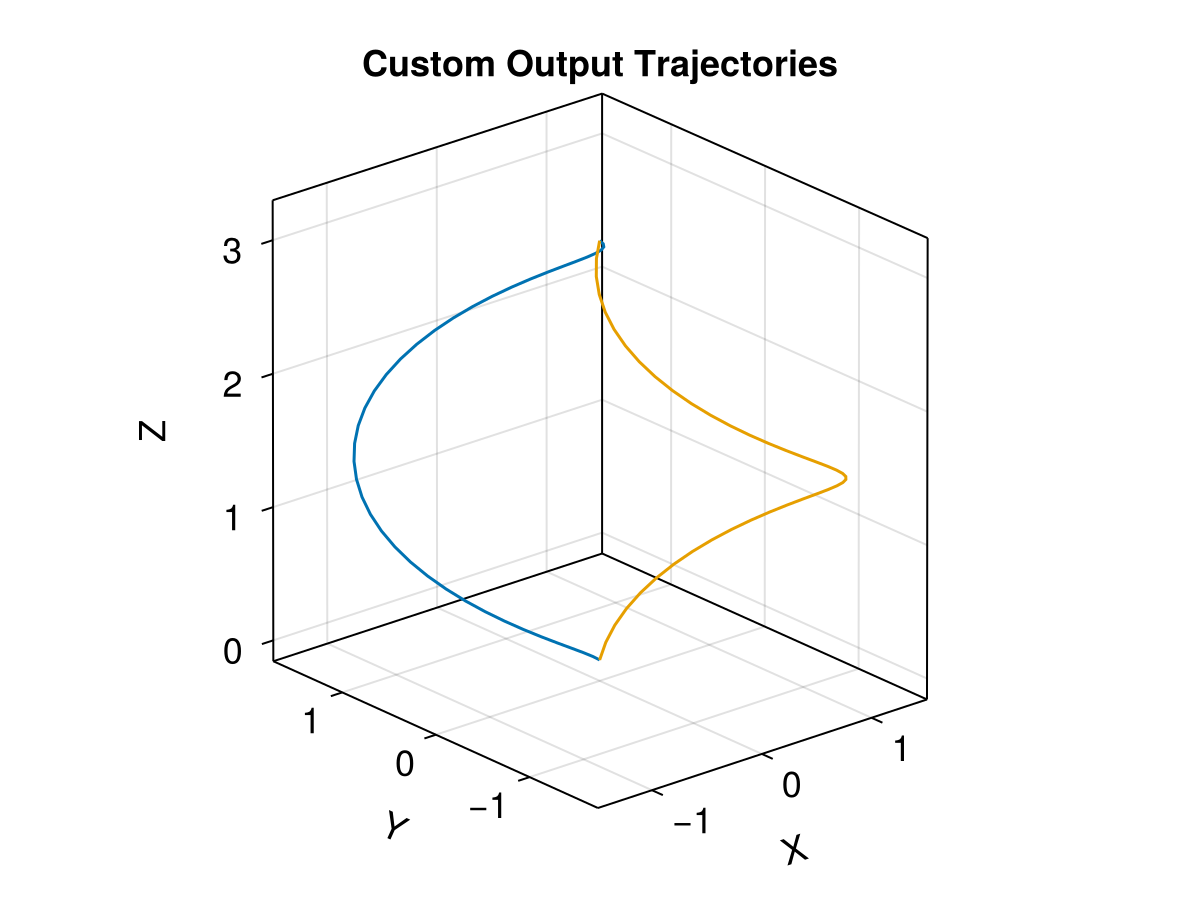

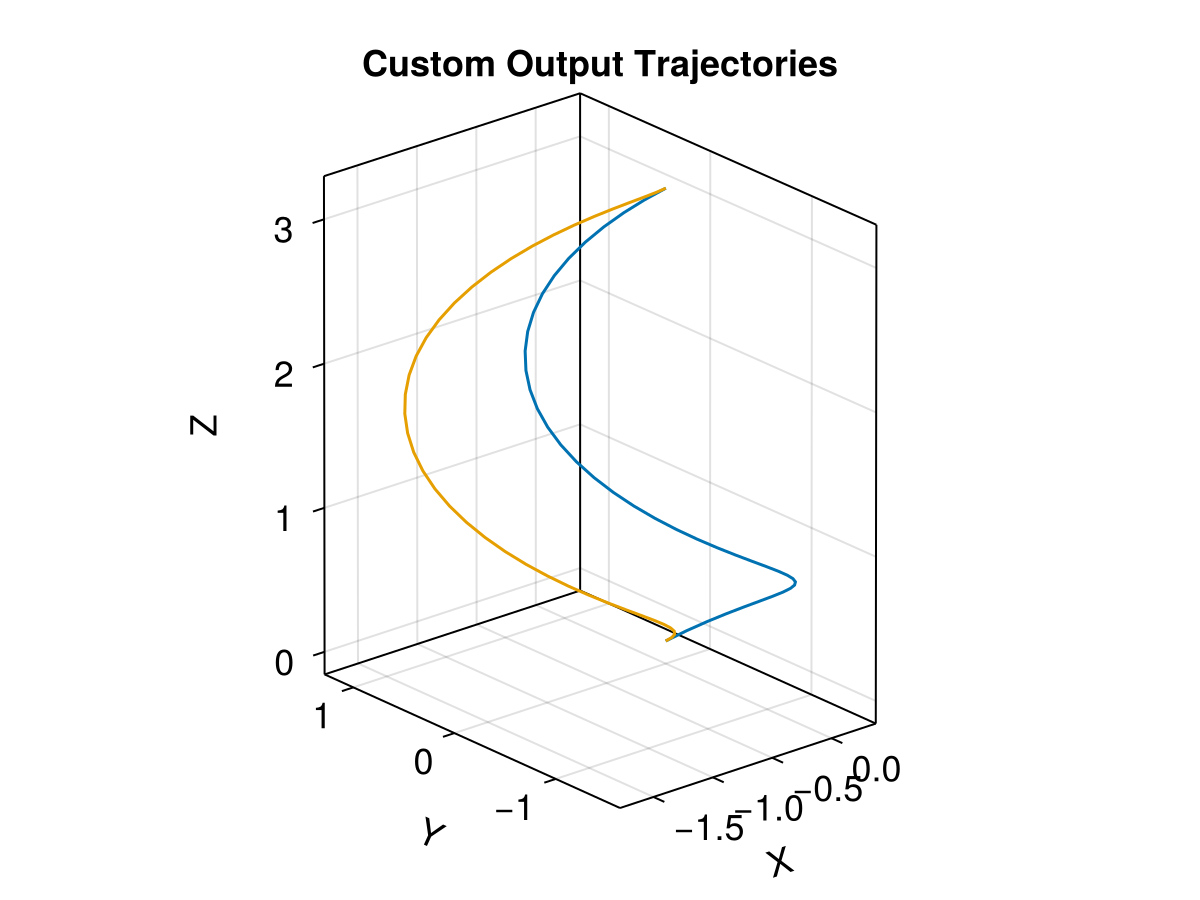

f = Figure(fontsize = 18)

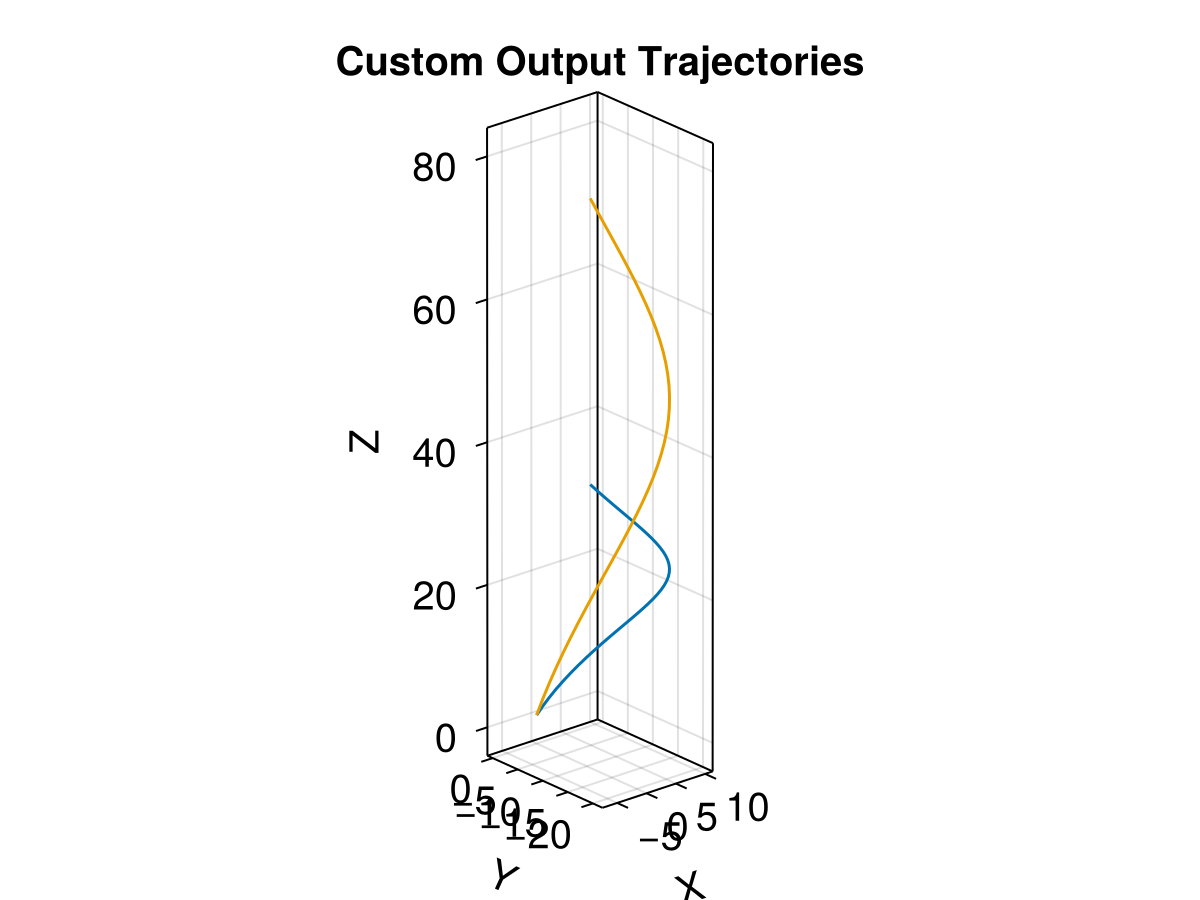

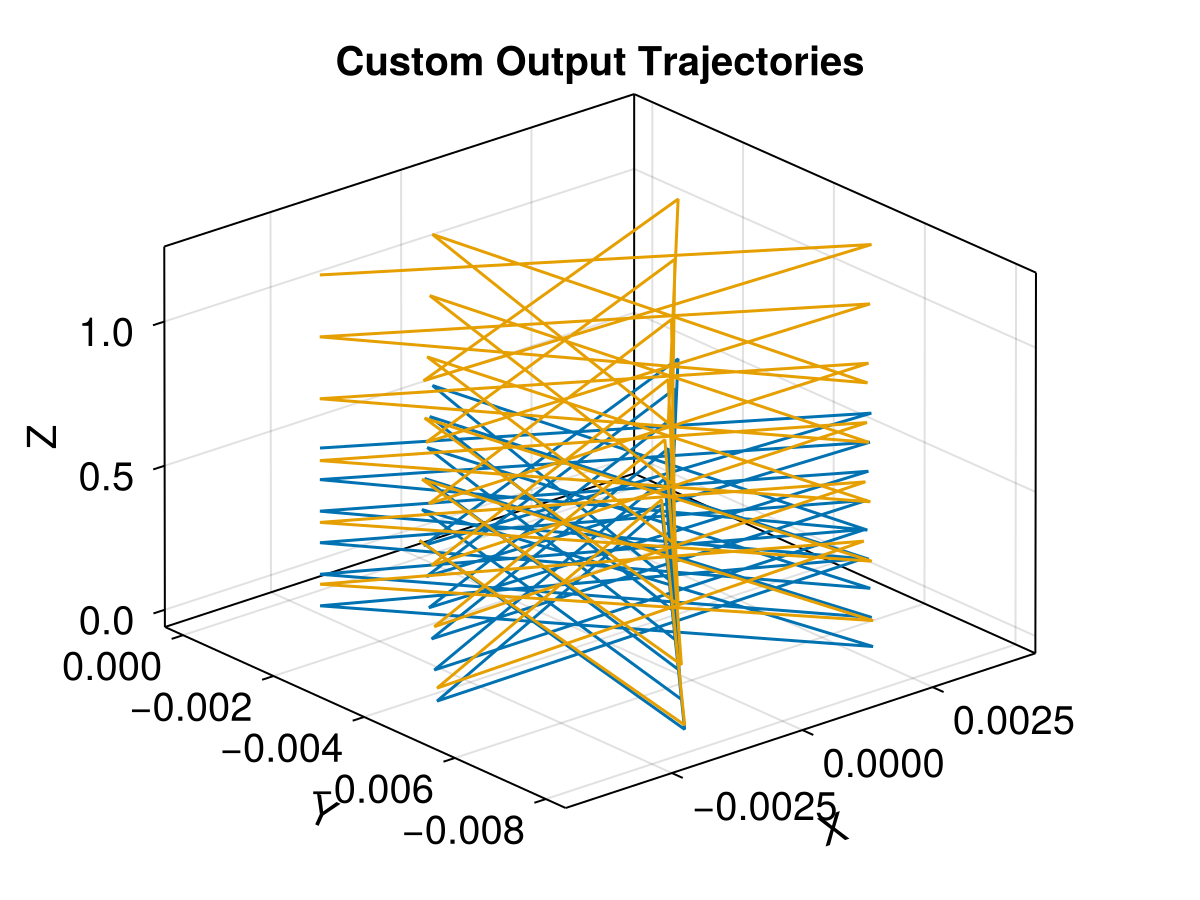

ax = Axis3(f[1, 1], title = "Custom Output Trajectories",
   xlabel = "X", ylabel = "Y", zlabel = "Z", aspect = :data)

for i in eachindex(sols_custom)
   # sols_custom[i][1] contains the trajectory (u)
   xp = [s[1] for s in sols_custom[i][1]]
   yp = [s[2] for s in sols_custom[i][1]]
   zp = [s[3] for s in sols_custom[i][1]]
   lines!(ax, xp, yp, zp, label = "$i")
end

4. Native Boris Pusher

We can also solve the ensemble problem with the native Boris pusher. Note that the Boris pusher requires additional parameters: a fixed timestep, and an output save interval.

julia

dt = 0.1
savestepinterval = 1

# Reuse the basic problem parameters
prob_boris = TraceProblem(stateinit, tspan, param; prob_func = prob_func_basic)
trajs_boris = TestParticle.solve(prob_boris; dt, trajectories = 3, savestepinterval)

# Visualization

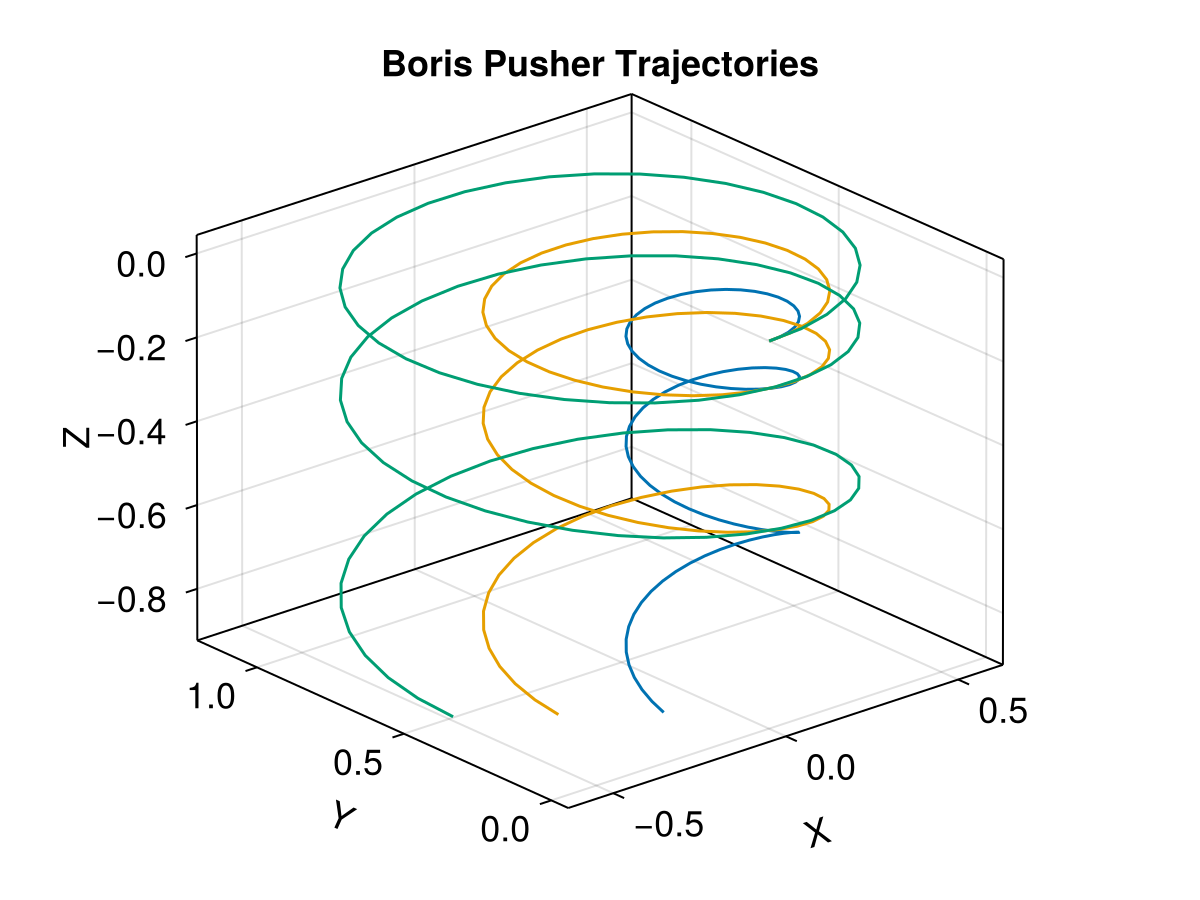

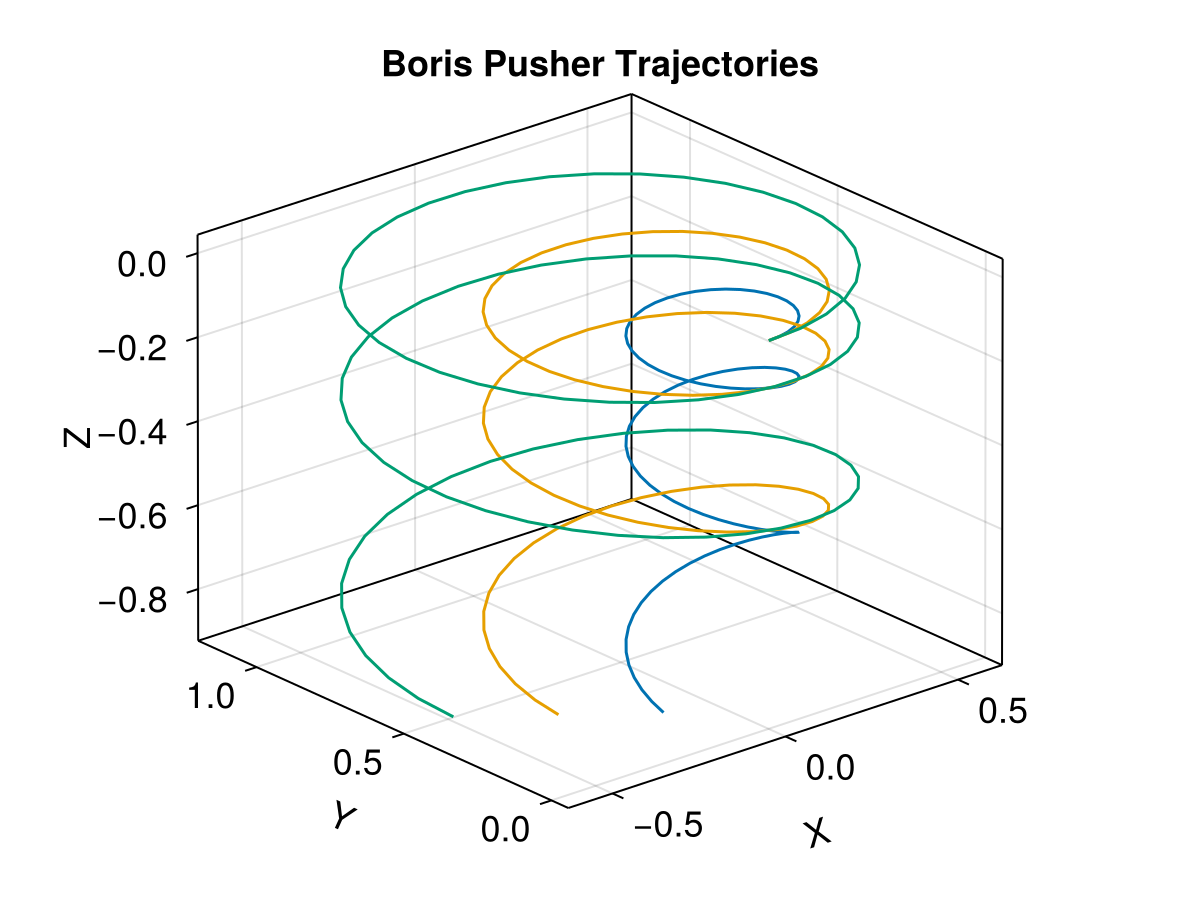

f = Figure(fontsize = 18)

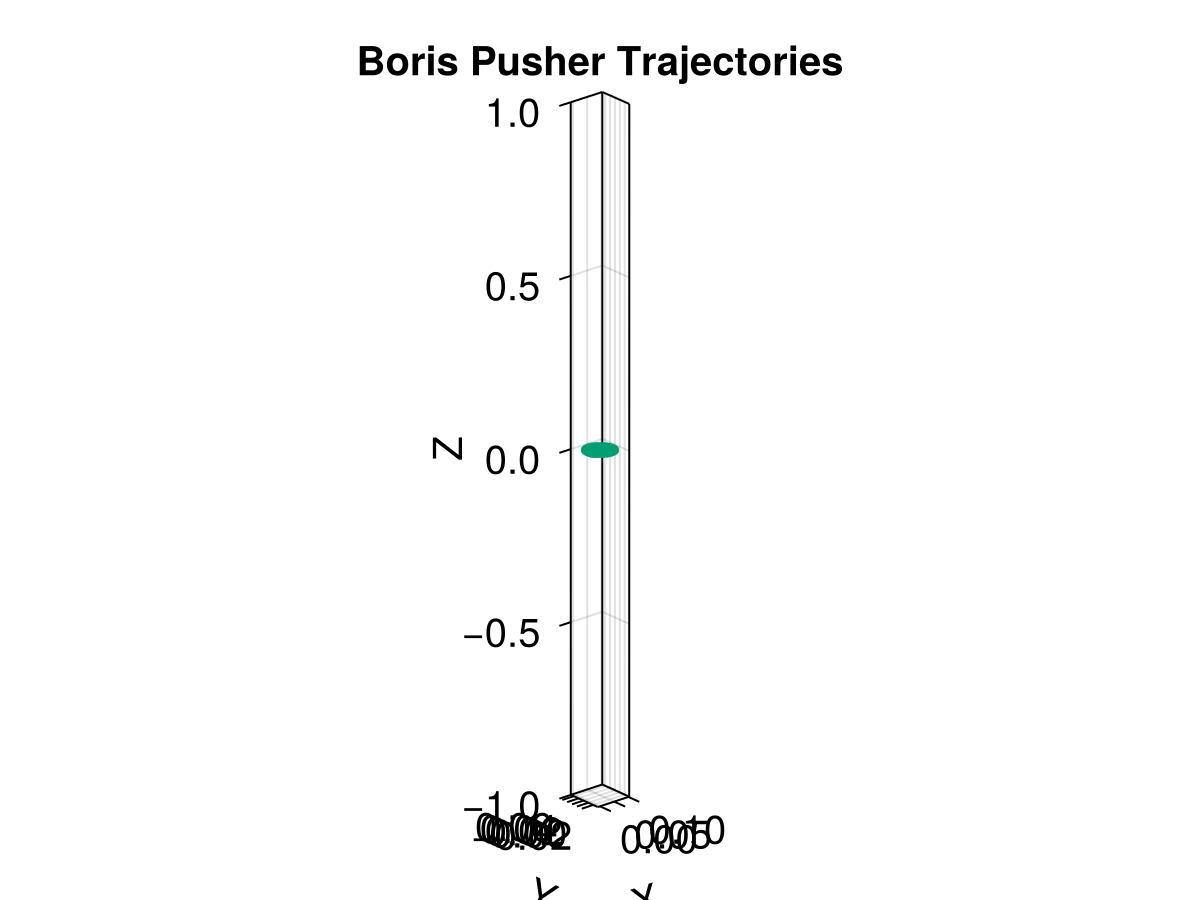

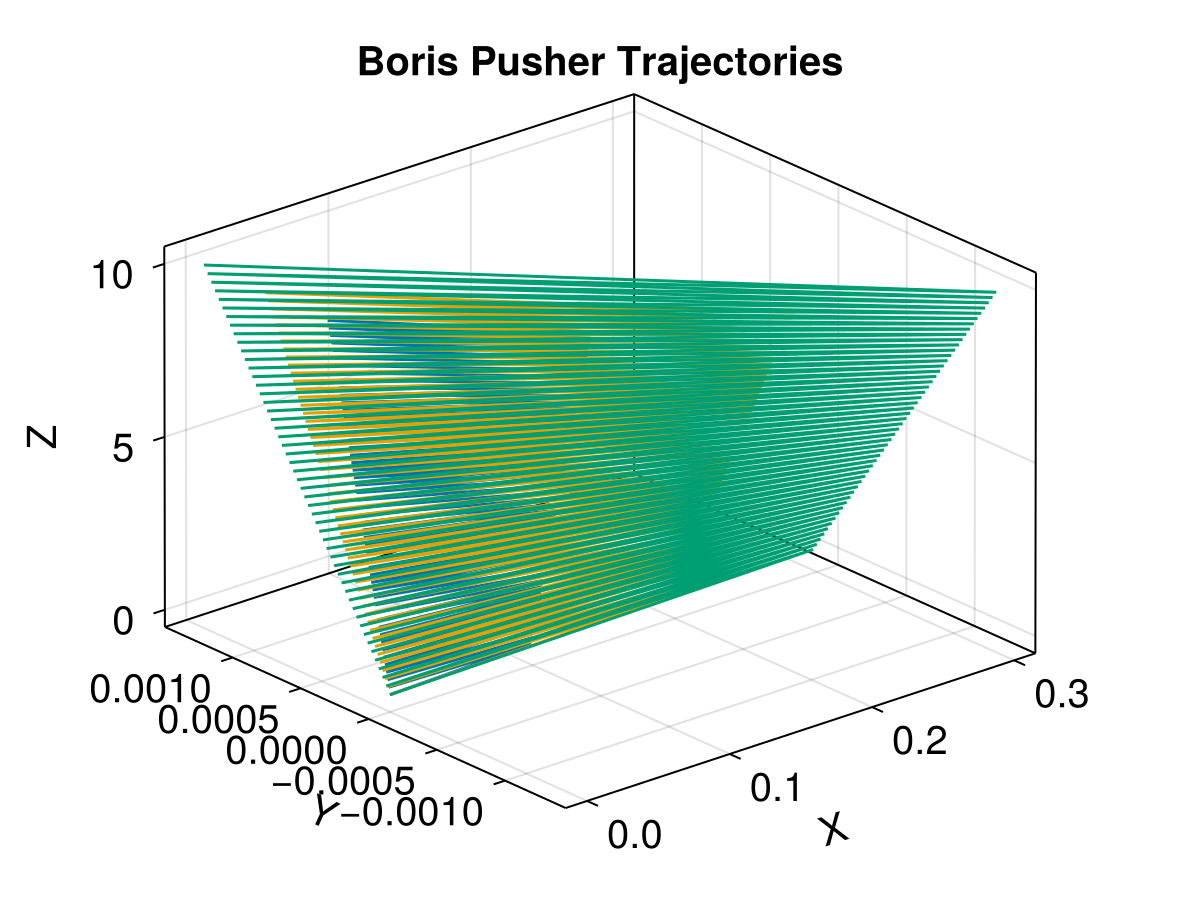

ax = Axis3(f[1, 1], title = "Boris Pusher Trajectories",
   xlabel = "X", ylabel = "Y", zlabel = "Z", aspect = :data)

for i in eachindex(trajs_boris)
   lines!(
      ax, trajs_boris[i]; idxs = (1, 2, 3), label = "$i", color = Makie.wong_colors()[i])
end
