FFT Solver

Solve for B given a current density J on a uniform grid.

using Magnetostatics, StaticArrays, LinearAlgebra, FFTW
using CairoMakie

# Define Grid
Nx, Ny, Nz = 8, 8, 8
dx = 0.1
J = zeros(Float64, 3, Nx, Ny, Nz)

# Populate J with a wire along z at the center
# Use a Gaussian distribution to minimize aliasing
width = 2.5 * dx
I = 1.0 # Current [A]

x = (0:Nx-1) .* dx .- (Nx*dx/2)
y = (0:Ny-1) .* dx .- (Ny*dx/2)
z = (0:Nz-1) .* dx .- (Nz*dx/2)

set_current_wire!(J, x, y, z, SVector(0.0, 0.0, 0.0), SVector(0.0, 0.0, 1.0), I, width)

# Solve
solver = FFTSolver()
B = solve(solver, J, dx)
println("Max B magnitude: ", maximum(sqrt.(sum(B.^2, dims=1))))

Max B magnitude: 2.8847388678470594e-7

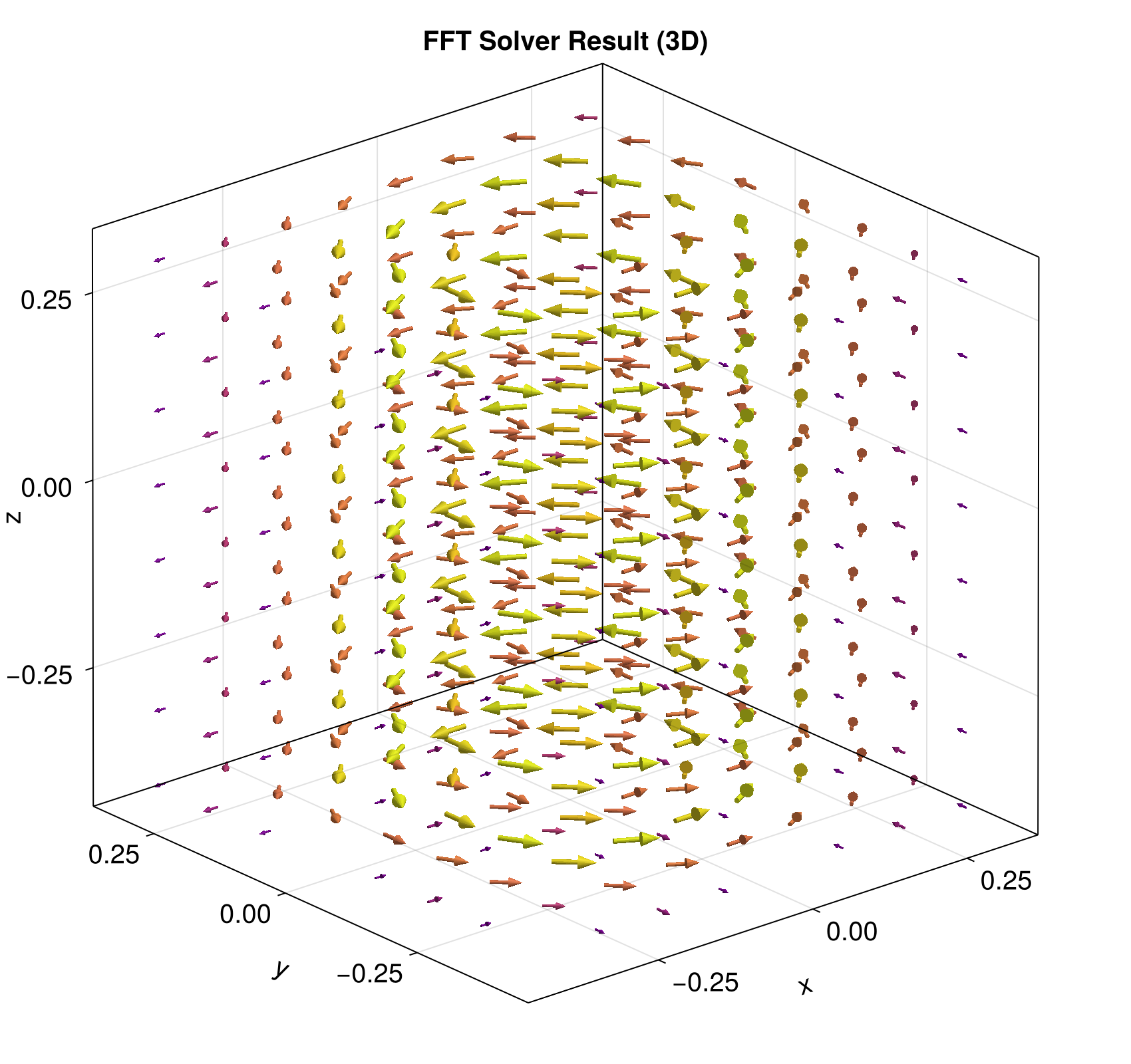

Visualizing the 3D magnetic field:

# Create points and vectors
ps = [Point3f(x[i], y[j], z[k]) for i in 1:Nx, j in 1:Ny, k in 1:Nz]
ns = [Vec3f(B[1,i,j,k], B[2,i,j,k], B[3,i,j,k]) for i in 1:Nx, j in 1:Ny, k in 1:Nz]
strength = vec(norm.(ns))

fig = Figure(size = (850, 800), fontsize=20)
ax = Axis3(fig[1, 1];
    xlabel="x", ylabel="y", zlabel="z", aspect=:data, title="FFT Solver Result (3D)")

arrows3d!(ax, vec(ps), vec(ns);
    lengthscale=2e5, color=strength, colormap=:plasma)

fig
