Current Loop

The magnetic field of a circular current loop is calculated using complete elliptic integrals. In local cylindrical coordinates $(\rho ,\varphi ,z)$ with the loop in the $z=0$ plane, the magnetic field is given by:

$$\begin{array}{rl}{B}_{\rho }& =\frac{{\mu }_{0}I}{2\pi }\frac{z}{\rho \sqrt{(\rho +a{)}^2+z^2}}[\frac{a^2+{\rho }^2+z^2}{(a-\rho {)}^2+z^2}E(k^2)-K(k^2)]\\ B_z& =\frac{{\mu }_{0}I}{2\pi \sqrt{(\rho +a{)}^2+z^2}}[\frac{a^2-{\rho }^2-z^2}{(a-\rho {)}^2+z^2}E(k^2)+K(k^2)]\end{array}$$

where $a$ is the loop radius, $k^2=\frac{4a\rho }{(\rho +a{)}^2+z^2}$, and $K(k^2)$ and $E(k^2)$ are complete elliptic integrals of the first and second kind.

Calculate the field of a circular current loop.

using Magnetostatics, StaticArrays, LinearAlgebra
using CairoMakie

# Define loop parameters
radius = 1.0
current = 10.0
center = SVector(0.0, 0.0, 0.0)
normal = SVector(0.0, 0.0, 1.0)

# Create loop object
loop = CurrentLoop(radius, current, center, normal)

# Query field
r = SVector(0.0, 0.0, 0.5)
B = getB_loop(r, loop)
println("B at (0,0,0.5): $B [T]")

B at (0,0,0.5): [0.0, 0.0, 4.495881427866065e-6] [T]

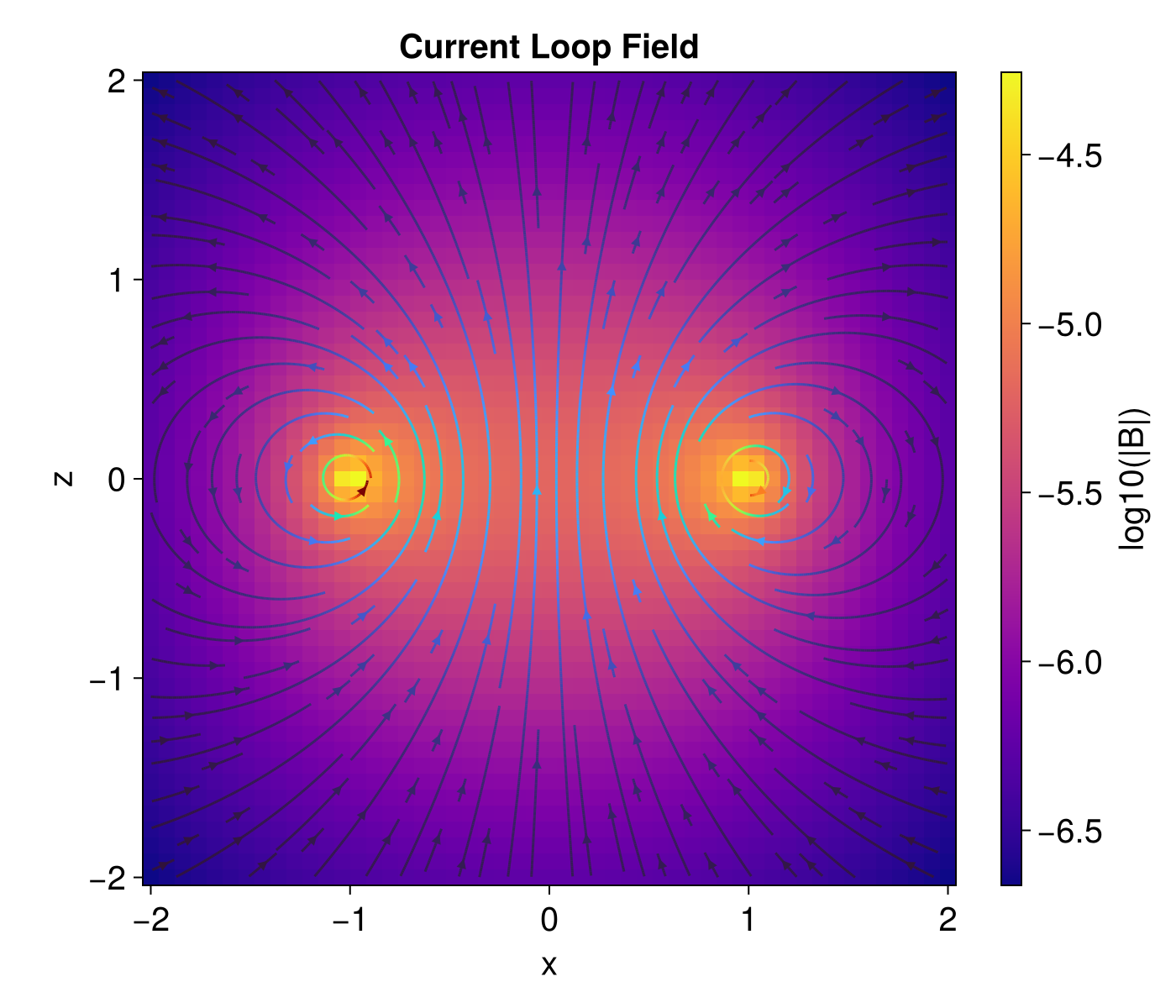

Visualizing the field in the xz-plane:

xs = range(-2, 2, length=51)
zs = range(-2, 2, length=51)

function field_xz_loop(x, z)
    B = getB_loop(SVector(x, 0.0, z), loop)
    return Point2f(B[1], B[3])
end

Bmag = [norm(getB_loop(SVector(x, 0.0, z), loop)) for x in xs, z in zs]

fig = Figure(size = (700, 600), fontsize=20)
ax = Axis(fig[1, 1];
    xlabel="x", ylabel="z", aspect=DataAspect(), title="Current Loop Field")

hm = heatmap!(ax, xs, zs, log10.(Bmag .+ 1e-9), colormap=:plasma)
Colorbar(fig[1, 2], hm, label="log10(|B|)")

streamplot!(ax, field_xz_loop, -2..2, -2..2;
    arrow_size = 8, linewidth = 1.5, colormap = :turbo)

fig
