Boris method

Source code compat Author Update time

This example demonstrates a single electron motion under a uniform B field. The E field is assumed to be zero such that there is no particle acceleration. We use the Boris method for phase space conservation under a fixed time step. This is compared against other ODE general algorithms for performance and accuracy.

using TestParticle, OrdinaryDiffEq, StaticArrays
using TestParticle: ZeroField, get_BField
import TestParticle as TP
using CairoMakie

function plot_trajectory(sol_boris, sol1, sol2)
   f = Figure(size = (700, 600), fontsize = 18)
   ax = Axis(f[1, 1], aspect = 1, limits = (-3, 1, -2, 2),
      xlabel = "X",
      ylabel = "Y")
   idxs = (1, 2)
   l0 = lines!(ax, sol_boris[1]; idxs, linewidth = 2, label = "Boris")
   l1 = lines!(ax, sol1; idxs,
      color = Makie.wong_colors()[2], linewidth = 2, linestyle = :dashdot, label = "Tsit5 fixed")
   l2 = linesegments!(ax, sol2; idxs,
      color = Makie.wong_colors()[3], linewidth = 2, linestyle = :dot, label = "Tsit5 adaptive")

   scale!(ax.scene, invrL, invrL)

   axislegend(position = :rt, framevisible = false)

   f
end

const Bmag = 0.01
uniform_B(x) = SA[0.0, 0.0, Bmag]
zero_E = ZeroField()

x0 = [0.0, 0.0, 0.0]
v0 = [0.0, 1e5, 0.0]
stateinit = [x0..., v0...]

param = prepare(zero_E, uniform_B, species = Electron)

# Reference parameters
const tperiod = 2π / (abs(param[1]) *
                 sqrt(sum(x -> x^2, get_BField(param)([0.0, 0.0, 0.0], 0.0))))
const rL = sqrt(v0[1]^2 + v0[2]^2 + v0[3]^2) / (abs(param[1]) * Bmag)
const invrL = 1 / rL;

We first trace the particle for one period with a discrete time step of a quarter period.

tspan = (0.0, tperiod)
dt = tperiod / 4

prob = TraceProblem(stateinit, tspan, param)

sol_boris = TP.solve(prob; dt, savestepinterval = 1);

Let's compare against the default ODE solver Tsit5 from DifferentialEquations.jl, in both fixed time step mode and adaptive mode:

prob = ODEProblem(trace!, stateinit, tspan, param)
sol1 = solve(prob, Tsit5(); adaptive = false, dt, dense = false, saveat = dt);
sol2 = solve(prob, Tsit5());

# Visualization
f = plot_trajectory(sol_boris, sol1, sol2)

It is clear that the Boris method comes with larger phase errors ($\mathcal{O}(\Delta t)$) compared with Tsit5. The phase error gets smaller using a smaller dt:

dt = tperiod / 8

prob = TraceProblem(stateinit, tspan, param)

sol_boris = TP.solve(prob; dt, savestepinterval = 1);

prob = ODEProblem(trace!, stateinit, tspan, param)
sol1 = solve(prob, Tsit5(); adaptive = false, dt, dense = false, saveat = dt);

# Visualization
f = plot_trajectory(sol_boris, sol1, sol2)

The Boris pusher shines when we do long time tracing, which is fast and conserves energy:

tspan = (0.0, 200 * tperiod)
dt = tperiod / 12

prob_boris = TraceProblem(stateinit, tspan, param)
prob = ODEProblem(trace!, stateinit, tspan, param)

sol_boris = TP.solve(prob_boris; dt, savestepinterval = 10);
sol1 = solve(prob, Tsit5(); adaptive = false, dt, dense = false, saveat = dt);
sol2 = solve(prob, Tsit5());
sol3 = solve(prob, Vern7());
sol4 = solve(prob, Vern9());

# Visualization
f = plot_trajectory(sol_boris, sol1, sol2)

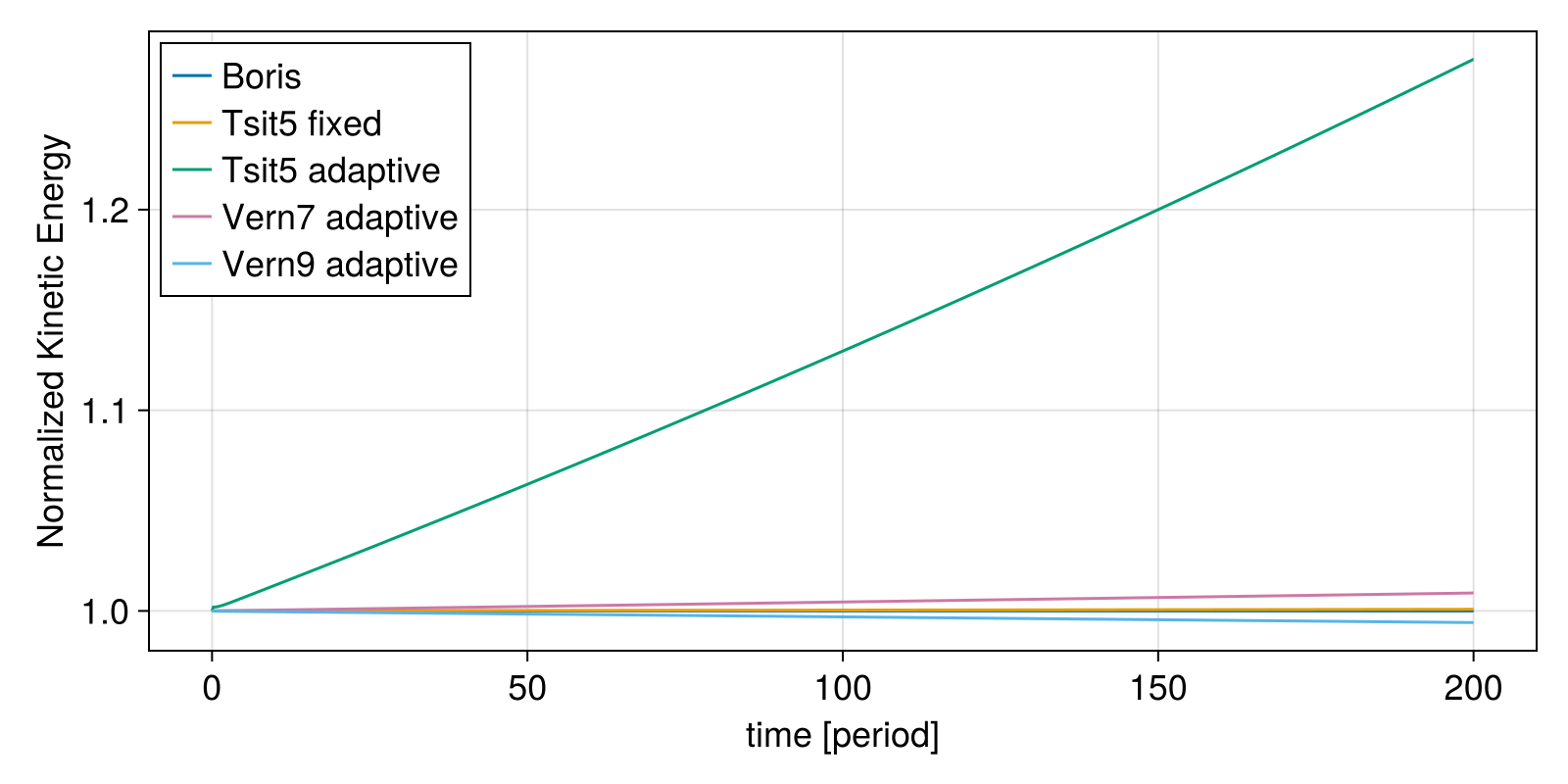

Fixed time step Tsit5() is ok, but adaptive Tsit5() is pretty bad for long time evolutions. The change in radius indicates change in energy, which is sometimes known as numerical heating.

E(vx, vy, vz) = 1 // 2 * (vx^2 + vy^2 + vz^2)
f = Figure(size = (800, 400), fontsize = 18)
ax = Axis(f[1, 1],
   xlabel = "time [period]",
   ylabel = "Normalized Kinetic Energy")

sols_to_plot = [
   (sol_boris[1], "Boris"),
   (sol1, "Tsit5 fixed"),
   (sol2, "Tsit5 adaptive"),
   (sol3, "Vern7 adaptive"),
   (sol4, "Vern9 adaptive")
]

for (sol, label) in sols_to_plot
   energy = map(x -> E(x[4:6]...), sol.u)
   lines!(ax, sol.t ./ tperiod, energy ./ energy[1], label = label)
end

axislegend(ax, position = :lt)

Another aspect to compare is performance:

@time sol_boris = TP.solve(prob_boris; dt, savestepinterval = 10)[1];
@time sol1 = solve(prob, Tsit5(); adaptive = false, dt, dense = false, saveat = dt);
@time sol2 = solve(prob, Tsit5());
@time sol3 = solve(prob, Vern7());
@time sol4 = solve(prob, Vern9());
  0.000108 seconds (261 allocations: 21.703 KiB)
  0.000890 seconds (4.88 k allocations: 376.812 KiB)
  0.001314 seconds (23.68 k allocations: 1.329 MiB)
  0.001345 seconds (23.08 k allocations: 1.326 MiB)
  0.001250 seconds (18.57 k allocations: 1.080 MiB)

We can extract the solution (x, y, z, vx, vy, vz) at any given time by performing a linear interpolation:

t = tspan[2] / 2
sol_boris(t)
6-element StaticArraysCore.MVector{6, Float64} with indices SOneTo(6):
    -3.911568318655031e-5
    -5.5137270837814596e-5
     0.0
 99639.26547015733
  8486.269885387323
     0.0

The Boris method is faster and consumes less memory. However, in practice, it is pretty hard to find an optimal algorithm. When calling OrdinaryDiffEq.jl, we recommend using Vern9() as a starting point instead of Tsit5(), especially combined with adaptive timestepping. Further fine-grained control includes setting dtmax, reltol, and abstol in the solve method.
